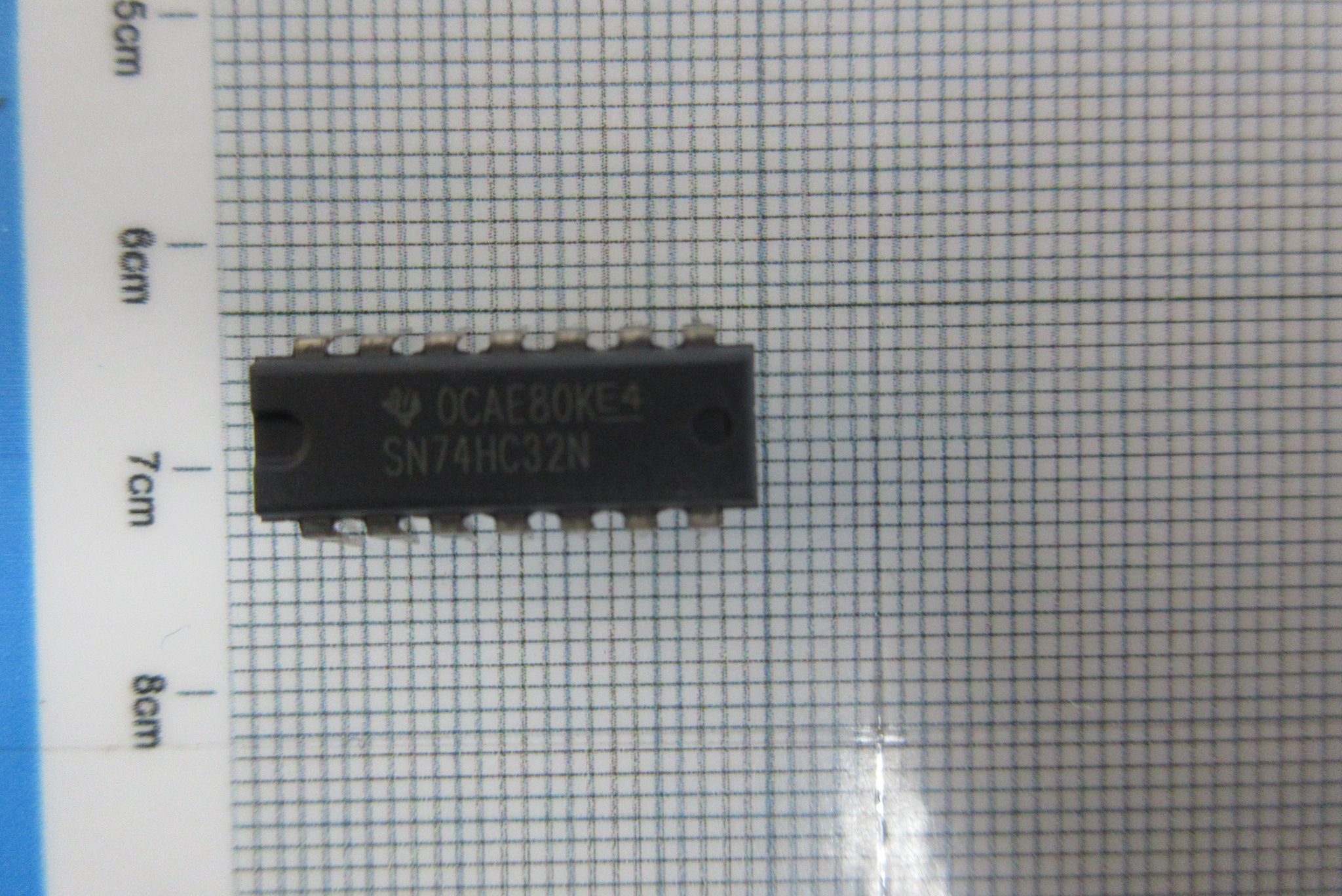

Part No.：SN74HC32N
Category：Logic
Manufacturer：Texas
Date Code：
Package Type：14DIP
Quantity：50000
Click：15
Update Time：2022-08-01 14:09:16
Description:
| Manufacturer | Texas | Manufacturer's Part # | SN74HC32N |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74HC | Part Status | Active |
| Logic Type | OR Gate | Number of Circuits | 4 |
| Number of Inputs | 2 | Features | - |
| Voltage - Supply | 2V ~ 6V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 5.2mA, 5.2mA | Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP | Package / Case | 14-DIP (0.300", 7.62mm) |
