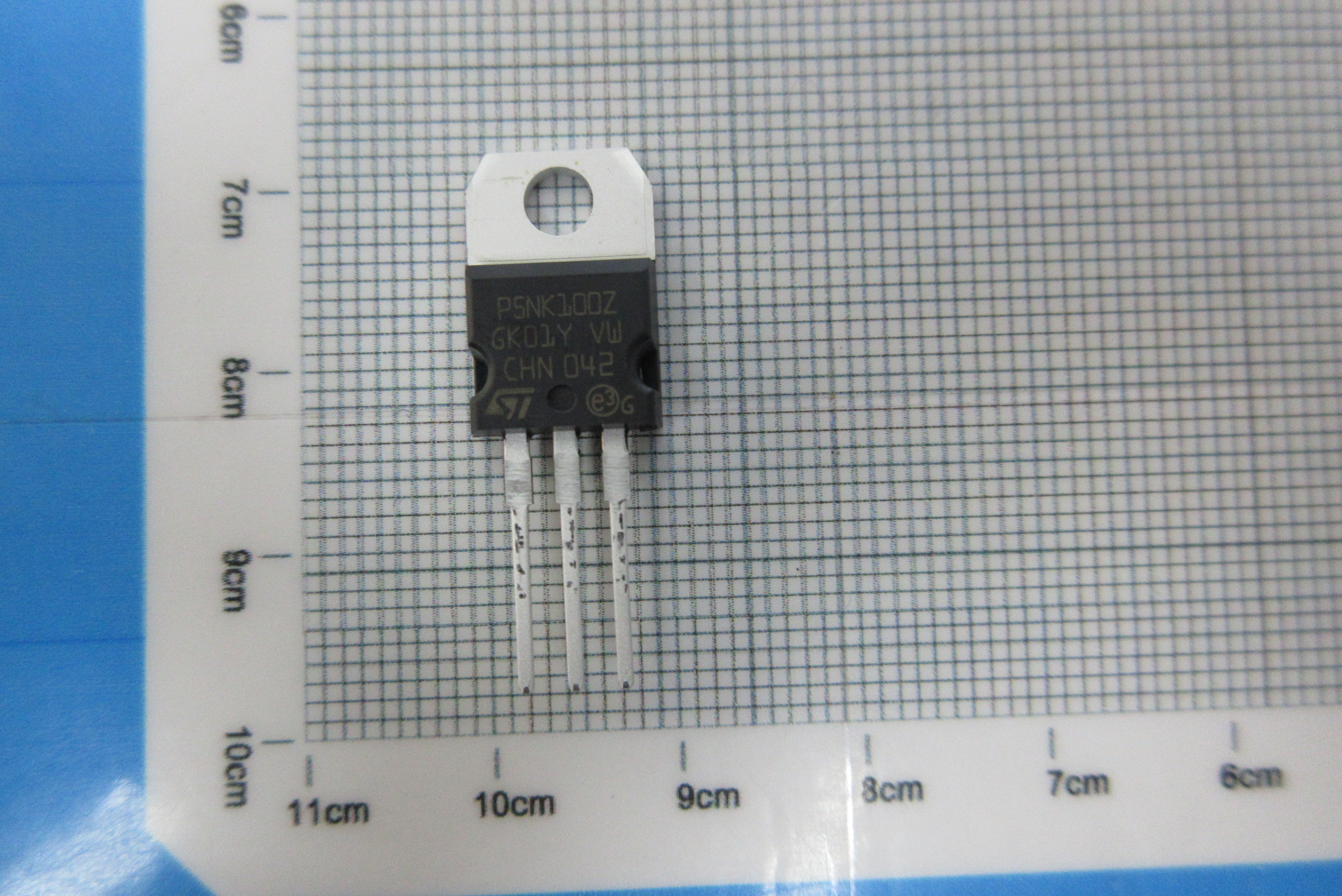

Part No.：STP5NK100Z
Category： FETS
Manufacturer：STMicroelectronics
Date Code：
Package Type：TO-220
Quantity：50000
Click：16
Update Time：2022-08-01 16:33:41
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | STP5NK100Z |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | SuperMESH3™ | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000V | Current - Continuous Drain (Id) @ 25°C | 3.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 3.7 Ohm @ 1.75A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA | Gate Charge (Qg) (Max) @ Vgs | 59nC @ 10V |
| Vgs (Max) | ±30V | Input Capacitance (Ciss) (Max) @ Vds | 1154pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB | Package / Case | TO-220-3 |
