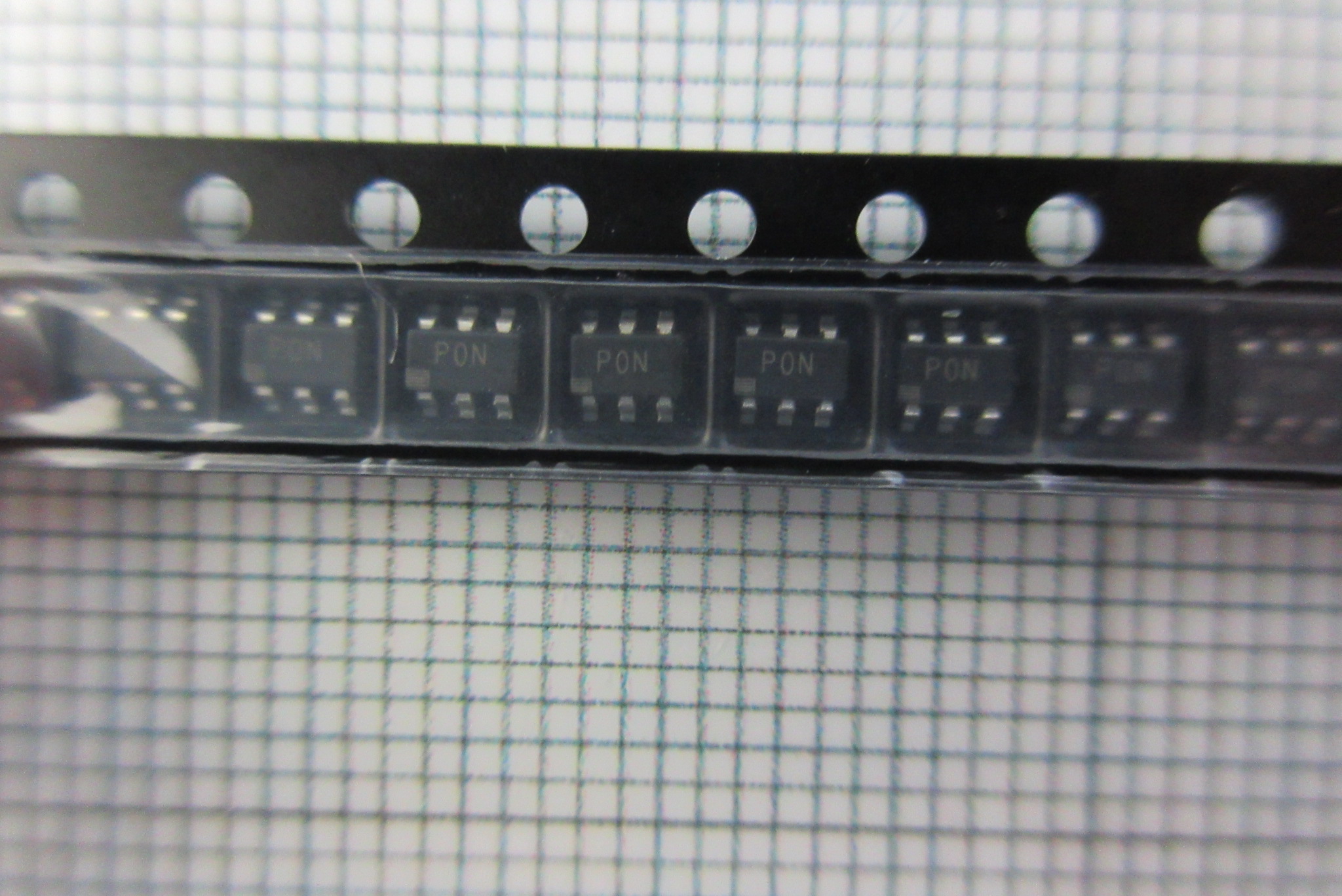

Part No.：ADP1864AUJZ-R7
Category：PMIC - Energy Metering
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：TSOT23-6
Quantity：50000
Click：13
Update Time：2022-08-03 11:07:24
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADP1864AUJZ-R7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Series | - | Part Status | Active |
| Output Type | Transistor Driver | Function | Step-Down |
| Output Configuration | Positive | Topology | Buck |
| Number of Outputs | 1 | Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.15V ~ 14V | Frequency - Switching | 580kHz |
| Duty Cycle (Max) | 100% | Synchronous Rectifier | No |
| Clock Sync | No | Serial Interfaces | - |
| Control Features | Current Limit | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | Supplier Device Package | TSOT-23-6 |
