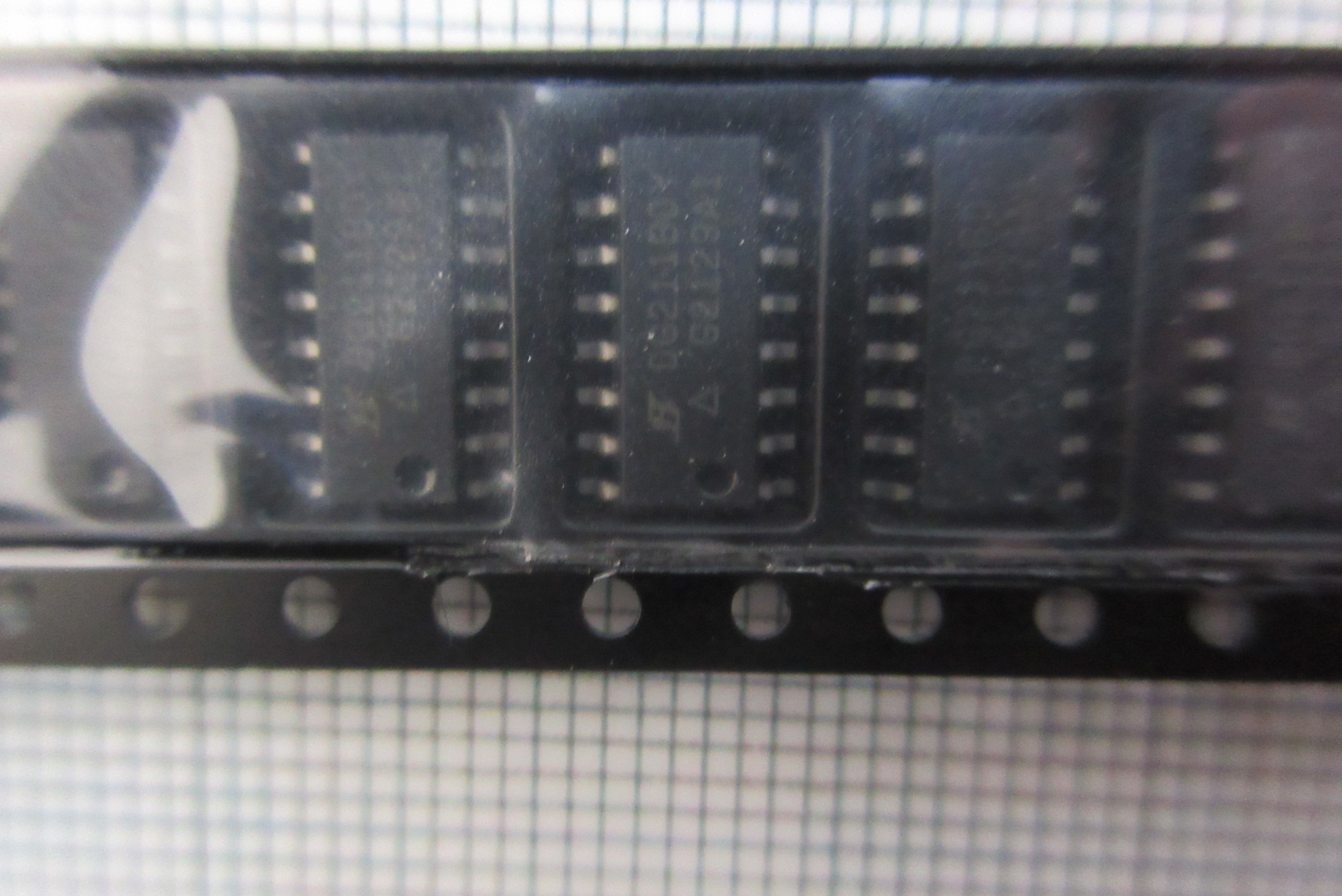

Part No.：DG211BDY-T1-E3
Category：Interface
Manufacturer：Vishay
Date Code：
Package Type：16SOIC
Quantity：50000
Click：3
Update Time：2022-08-03 15:23:08
Description:
| Manufacturer | Vishay | Manufacturer's Part # | DG211BDY-T1-E3 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | SPST - NC | Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 | On-State Resistance (Max) | 85 Ohm |
| Channel-to-Channel Matching (ΔRon) | 2 Ohm | Voltage - Supply, Single (V+) | 4.5V ~ 25V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 22V | Switch Time (Ton, Toff) (Max) | 300ns, 200ns |
| -3db Bandwidth | - | Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF | Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -95dB @ 100kHz | Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 16-SOIC |
