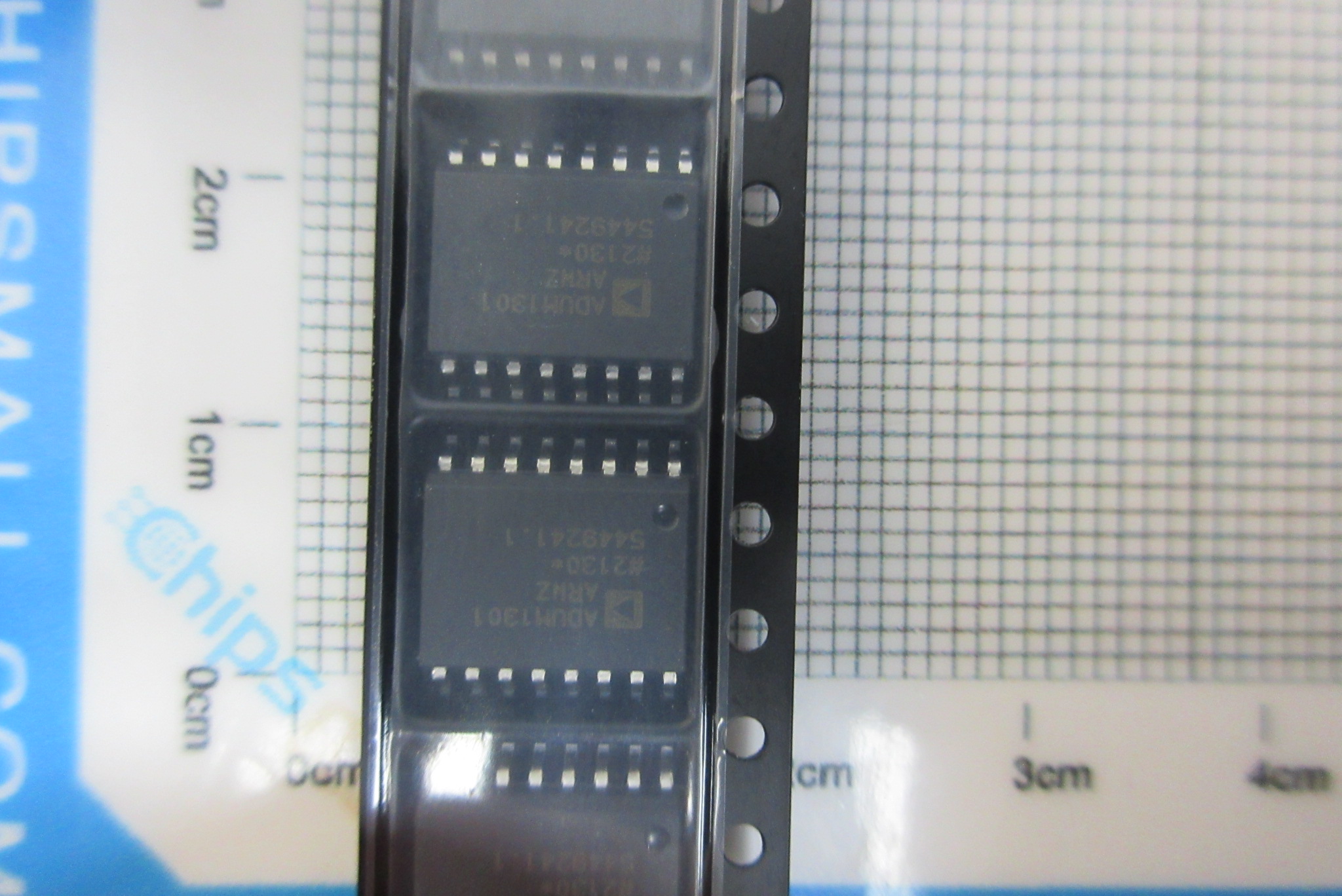

Part No.：ADUM1301ARWZ-RL
Category：Isolator
Manufacturer：Analog Devices, Inc.
Date Code：
Package Type：16SOIC
Quantity：50000
Click：2
Update Time：2022-08-11 14:08:48
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADUM1301ARWZ-RL |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Digital Isolators |
| Series | iCoupler® | Part Status | Active |
| Technology | Magnetic Coupling | Type | General Purpose |
| Isolated Power | No | Number of Channels | 3 |
| Inputs - Side 1/Side 2 | 2/1 | Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns | Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
