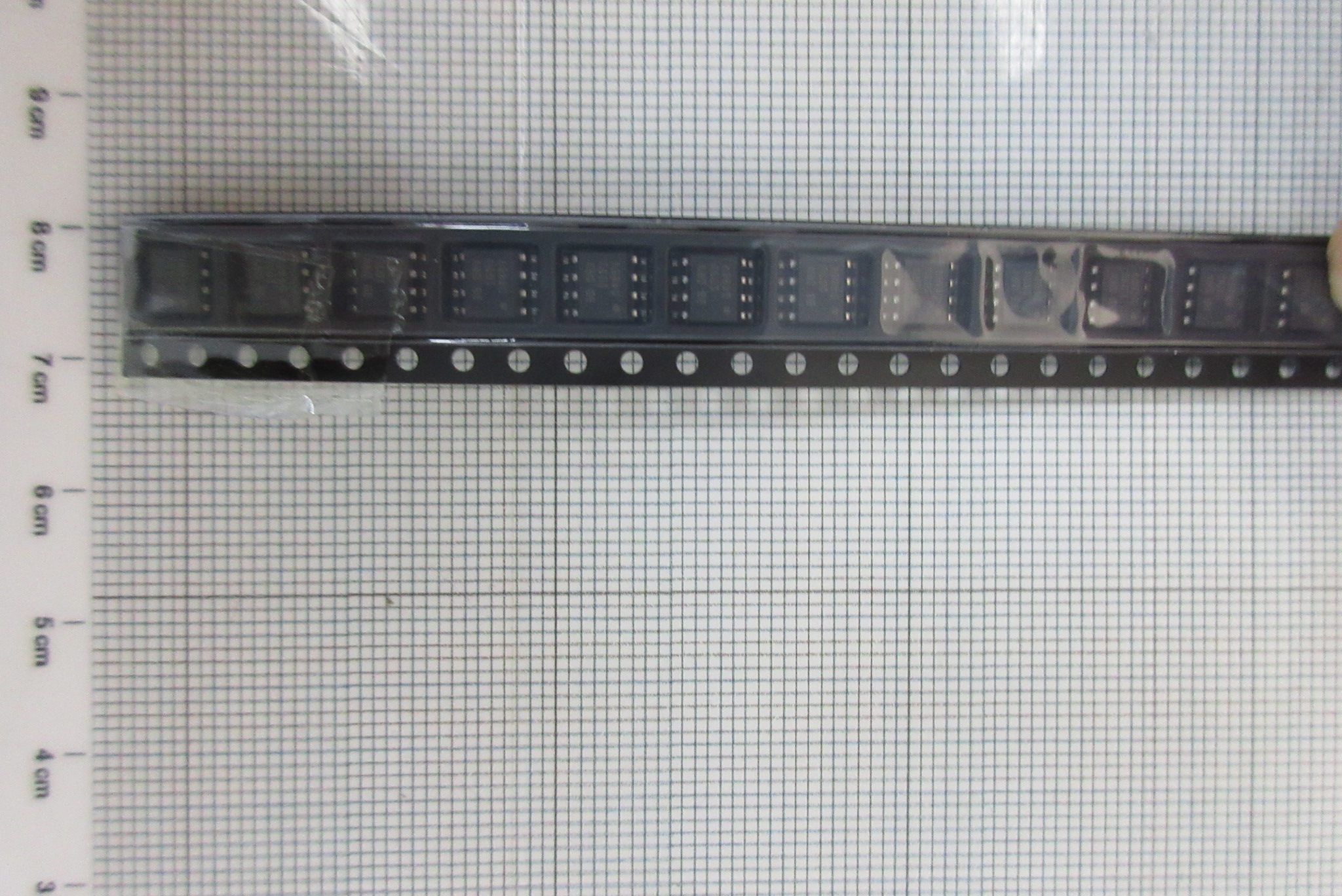

Part No.：DRV103U
Category：PMIC - Energy Metering
Manufacturer：Texas
Date Code：
Package Type：8SOIC
Quantity：50000
Click：34
Update Time：2022-08-15 11:09:56
Description:
| Manufacturer | Texas | Manufacturer's Part # | DRV103U |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | - | Part Status | Active |
| Switch Type | Relay, Solenoid Driver | Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 | Output Configuration | Low Side |
| Output Type | N-Channel | Interface | On/Off |
| Voltage - Load | 8V ~ 32V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A | Rds On (Typ) | - |
| Input Type | Non-Inverting | Features | Internal PWM, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Operating Temperature | -55°C ~ 125°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
