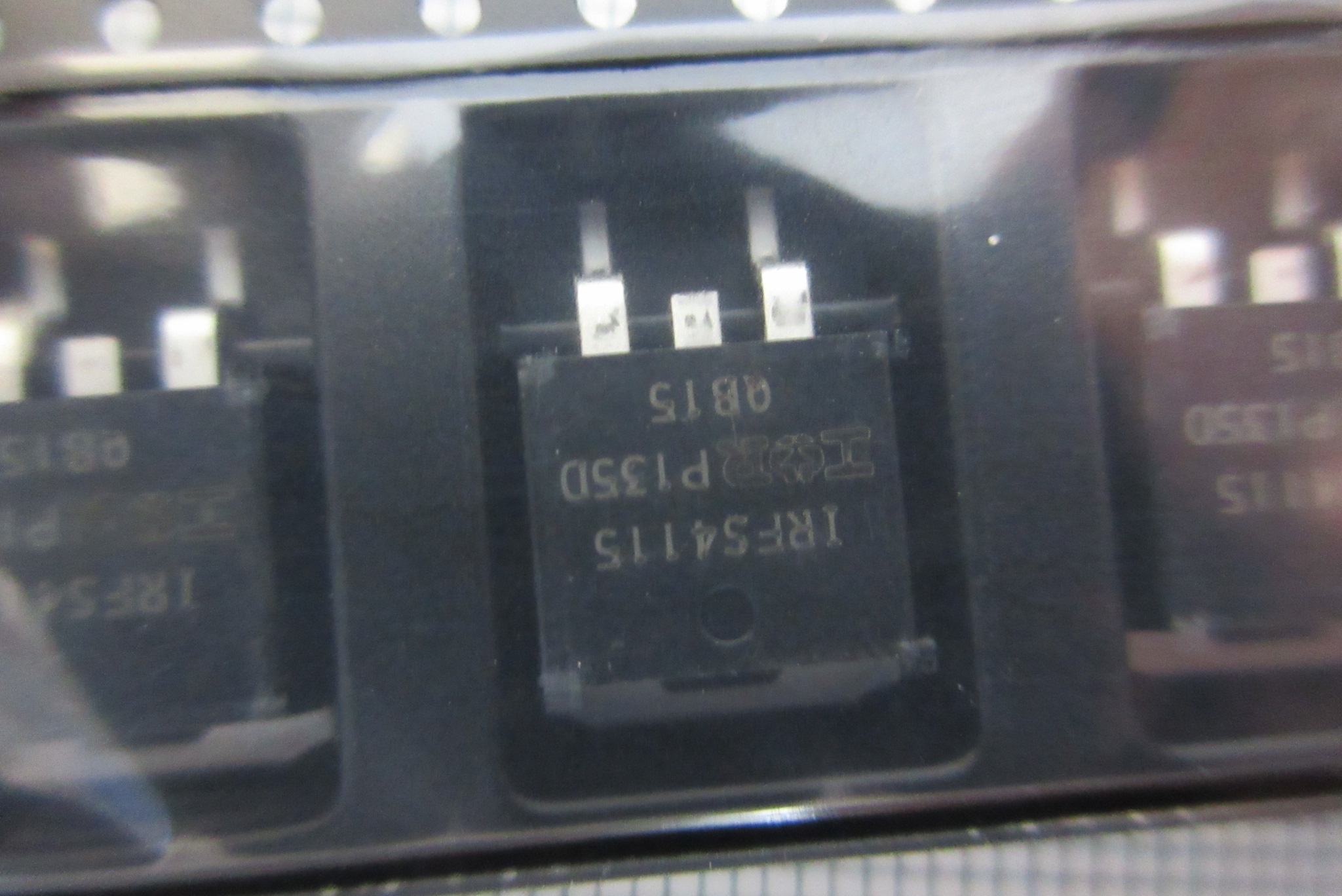

Part No.：IRFS4115TRLPBF
Category： FETS
Manufacturer：Infineon Technologies
Date Code：
Package Type：TO-263-3
Quantity：50000
Click：18
Update Time：2022-08-15 15:15:17
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRFS4115TRLPBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150V | Current - Continuous Drain (Id) @ 25°C | 195A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 12.1 mOhm @ 62A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 120nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 5270pF @ 50V |
| FET Feature | - | Power Dissipation (Max) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
