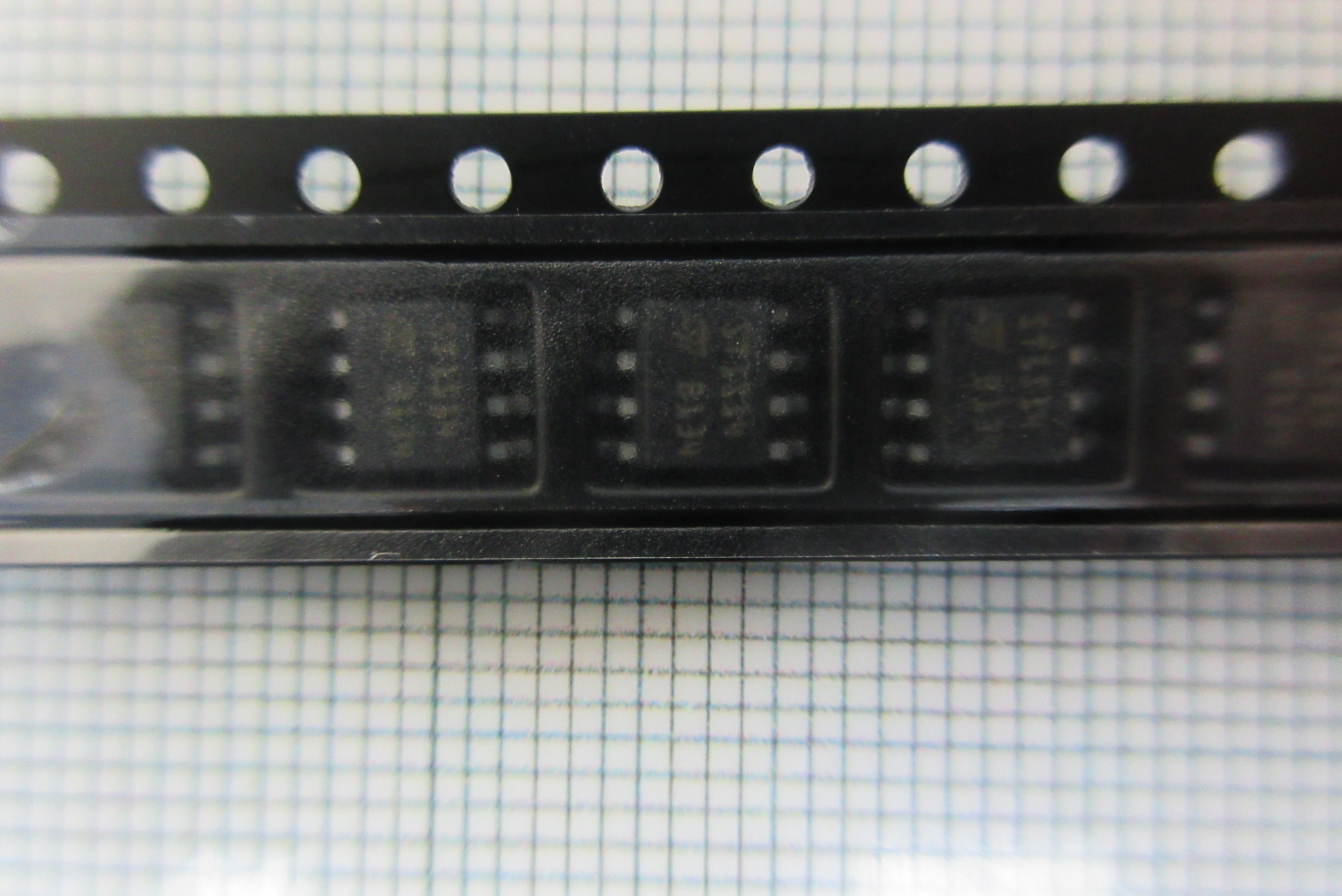

Part No.：ST1S14PHR
Category：PMIC - Energy Metering
Manufacturer：STMicroelectronics
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：2
Update Time：2022-08-17 15:18:16
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | ST1S14PHR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - | Part Status | Active |
| Function | Step-Down | Output Configuration | Positive |
| Topology | Buck | Output Type | Adjustable |
| Number of Outputs | 1 | Voltage - Input (Min) | 5.5V |
| Voltage - Input (Max) | 48V | Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 43.2V | Current - Output | 3A |
| Frequency - Switching | 850kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Supplier Device Package | 8-HSOP |
