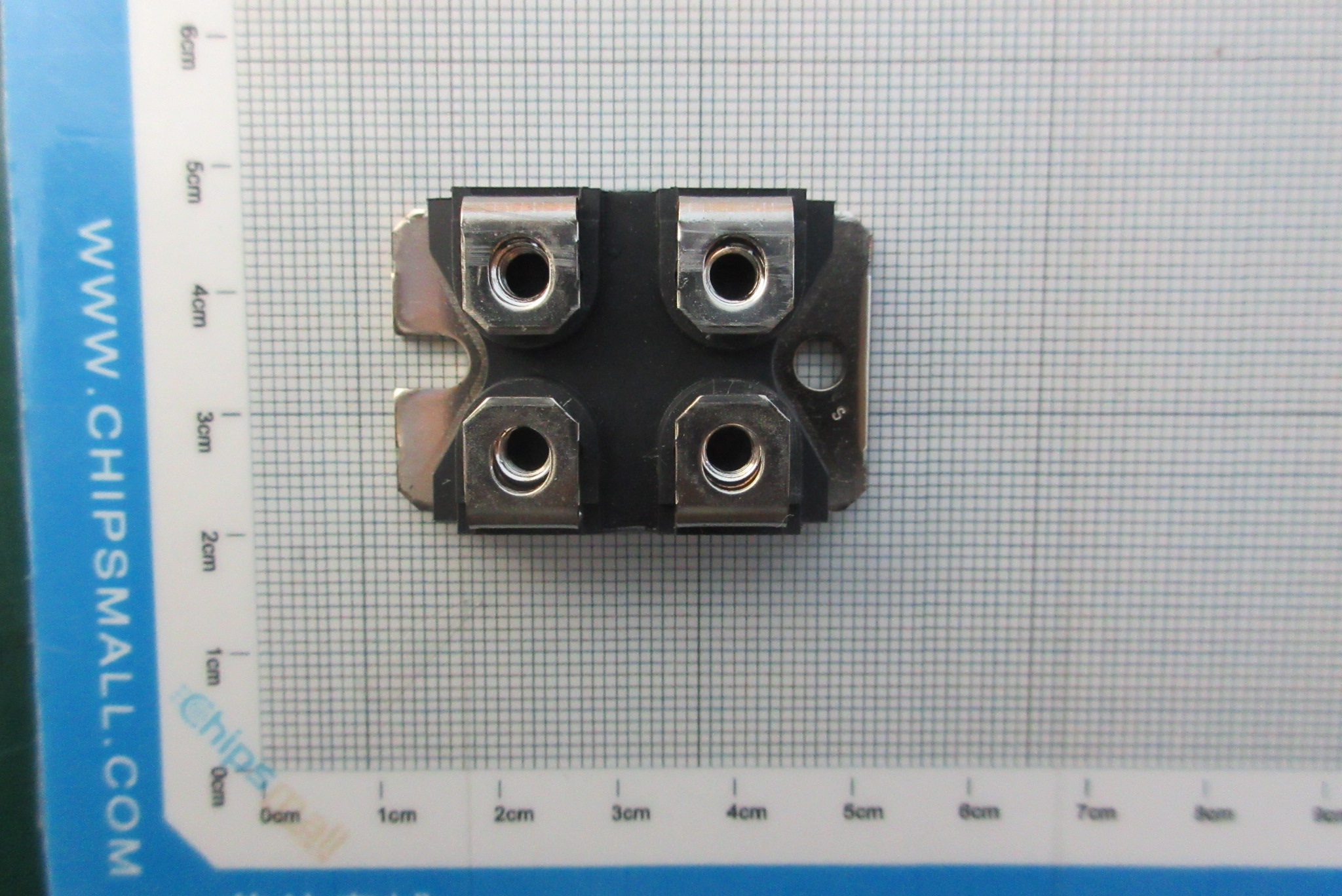

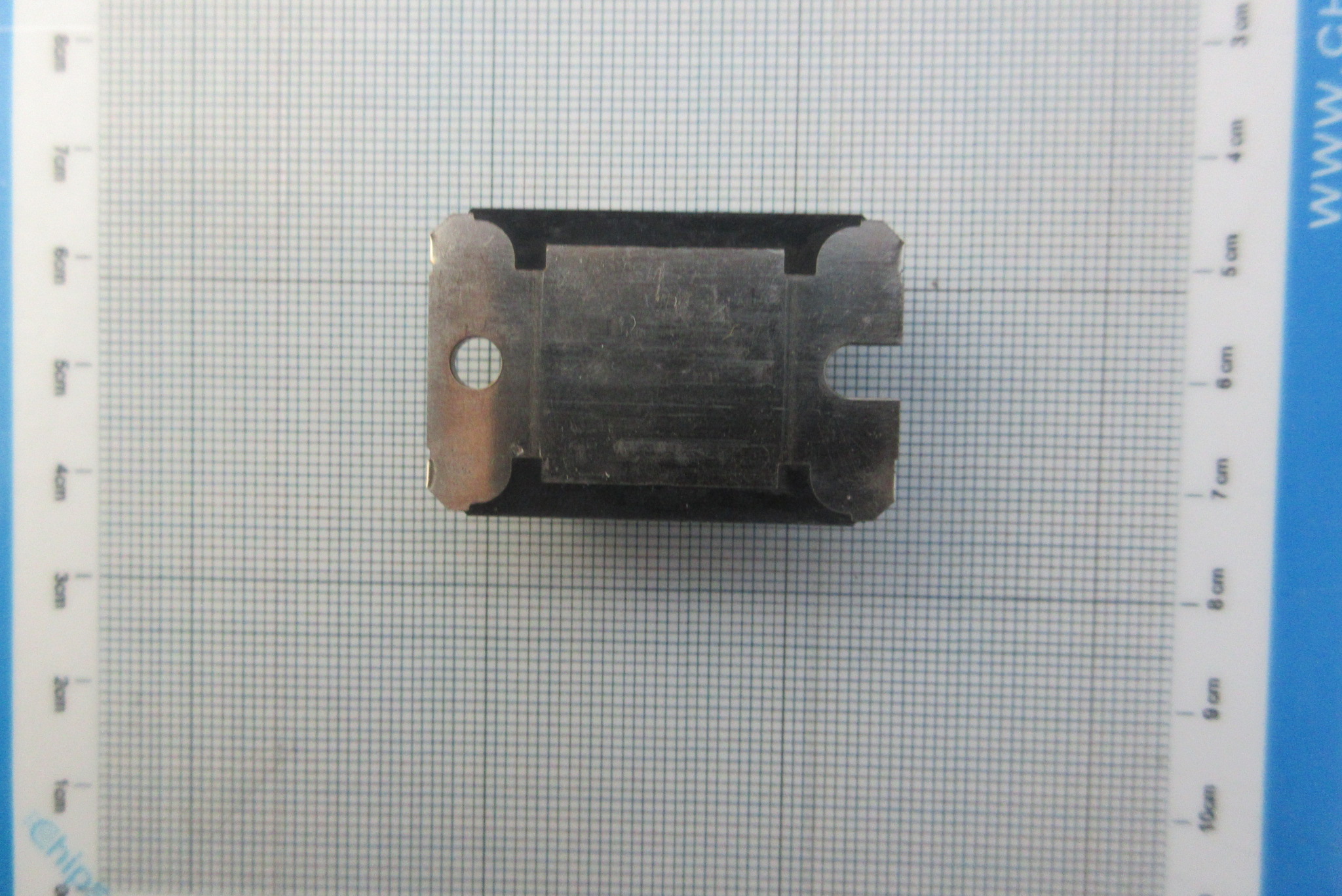

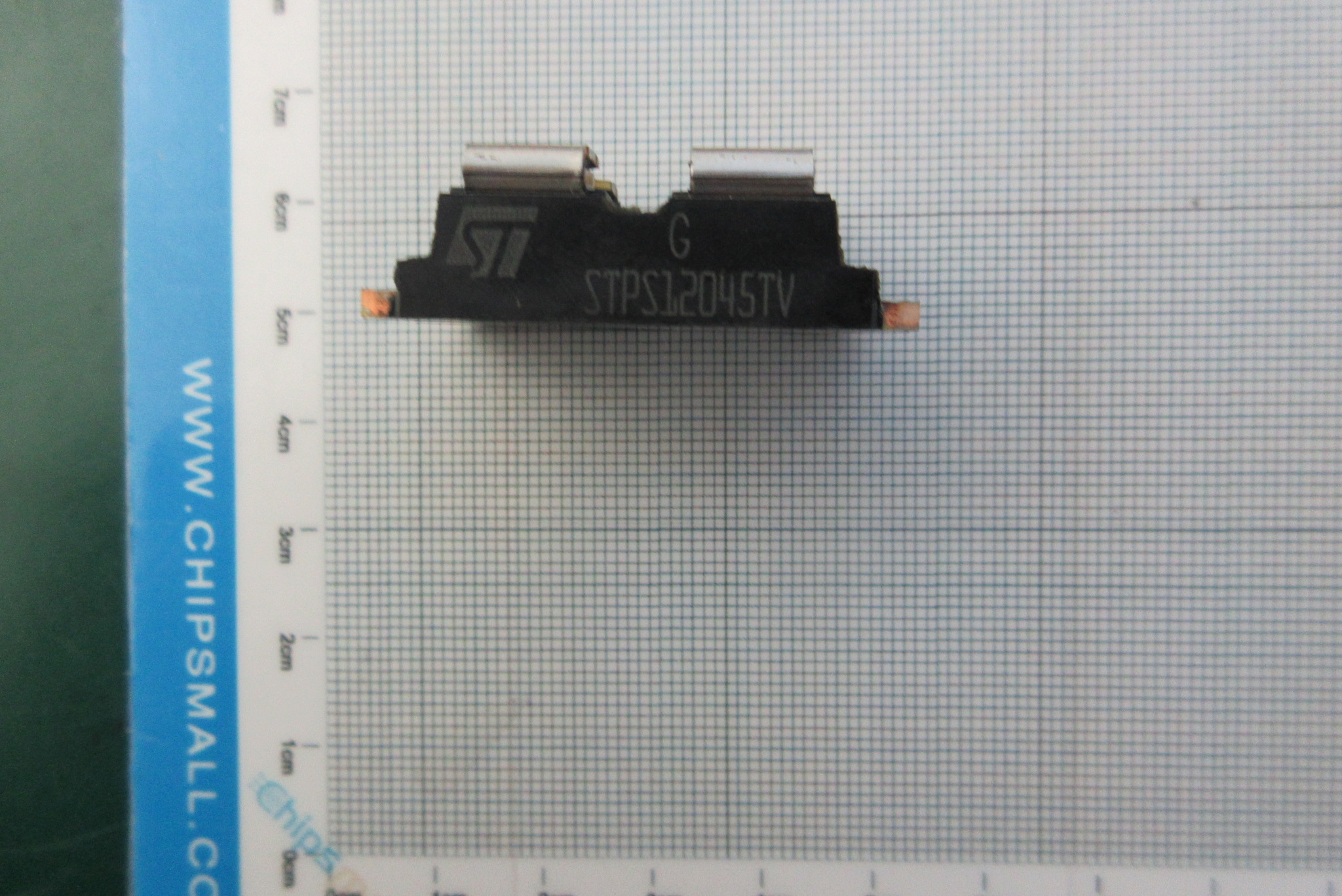

Part No.：STPS12045TV
Category：Rectifier
Manufacturer：STMicroelectronics
Date Code：
Package Type：ISOTOP
Quantity：50000
Click：28
Update Time：2022-08-17 18:10:19
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | STPS12045TV |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Arrays |
| Series | - | Part Status | Active |
| Diode Configuration | 2 Independent | Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45V | Current - Average Rectified (Io) (per Diode) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 670mV @ 60A | Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | Current - Reverse Leakage @ Vr | 1mA @ 45V |
| Operating Temperature - Junction | 150°C (Max) | Mounting Type | Chassis Mount |
| Package / Case | ISOTOP | Supplier Device Package | ISOTOP® |
