Description:

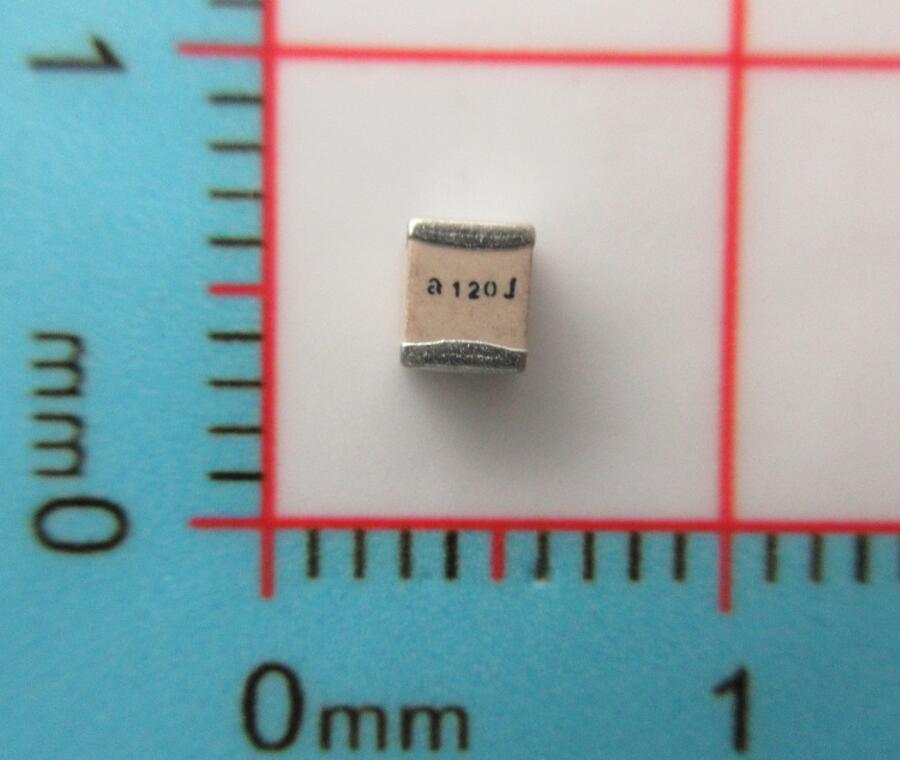

| Manufacturer | American Technical Ceramics | Manufacturer's Part # | 100B120JT500XT |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Ceramic Capacitors |
| Series | Porcelain Superchip® ATC 100B | Part Status | Active |
| Capacitance | 12pF | Tolerance | ±5% |
| Voltage - Rated | 500V | Temperature Coefficient | P90 |
| Operating Temperature | -55°C ~ 175°C | Features | High Q, Low Loss, Low ESL |
| Ratings | - | Applications | RF, Microwave, High Frequency, Bypass, Decoupling |
| Failure Rate | - | Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) | Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Height - Seated (Max) | - | Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - | Lead Style | - |
