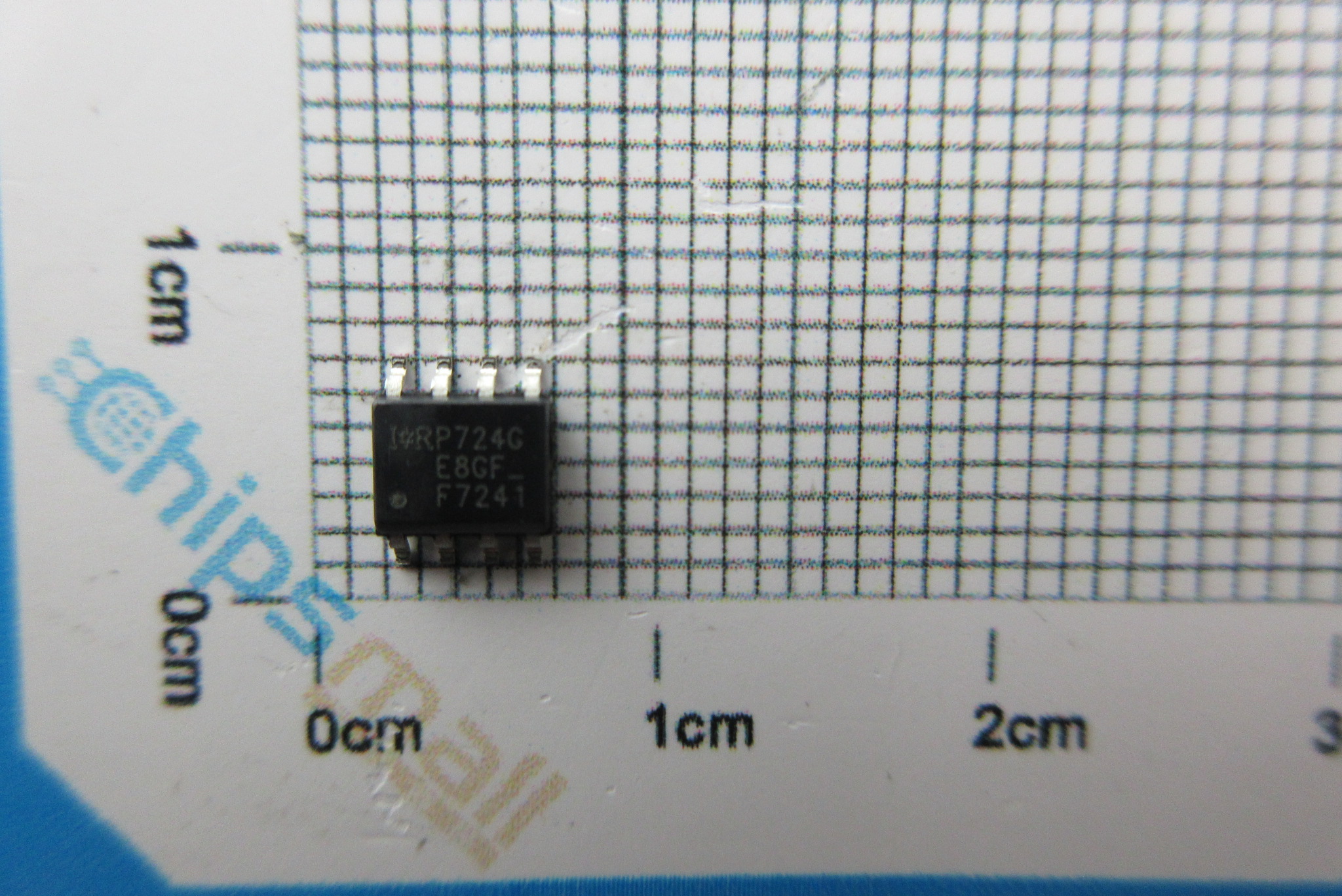

Part No.：IRF7241PBF
Category：Diodes/Transistors
Manufacturer：Infineon Technologies
Date Code：
Package Type： P-CH 40V 6.2A 8-SOIC
Quantity：100000
Click：7
Update Time：2022-04-30 14:30:13
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRF7241PBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Discontinued at Digi-Key |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V | Current - Continuous Drain (Id) @ 25°C | 6.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 41 mOhm @ 6.2A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 80nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 3220pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
