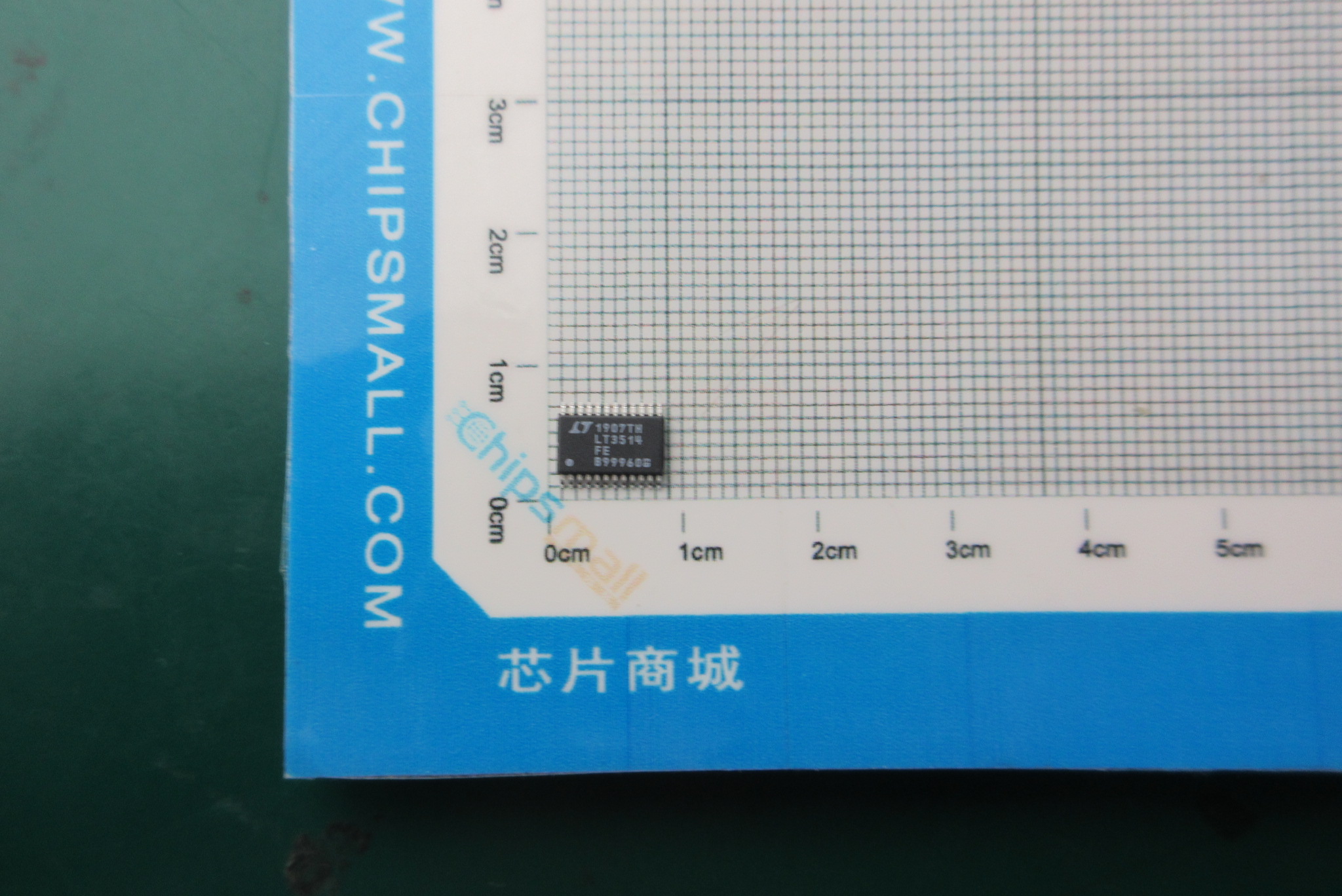

Part No.：LT3514IFE
Category：Integrated Circuit
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：24-TSSOP
Quantity：50000
Click：36
Update Time：2022-06-06 11:11:16
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | LT3514IFE |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - | Part Status | Obsolete |
| Function | Step-Down | Output Configuration | Positive |
| Topology | Buck | Output Type | Adjustable |
| Number of Outputs | 3 | Voltage - Input (Min) | 3.2V |
| Voltage - Input (Max) | 36V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 36V | Current - Output | 2A, 1A |
| Frequency - Switching | 270kHz ~ 2.1MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Supplier Device Package | 24-TSSOP-EP |
