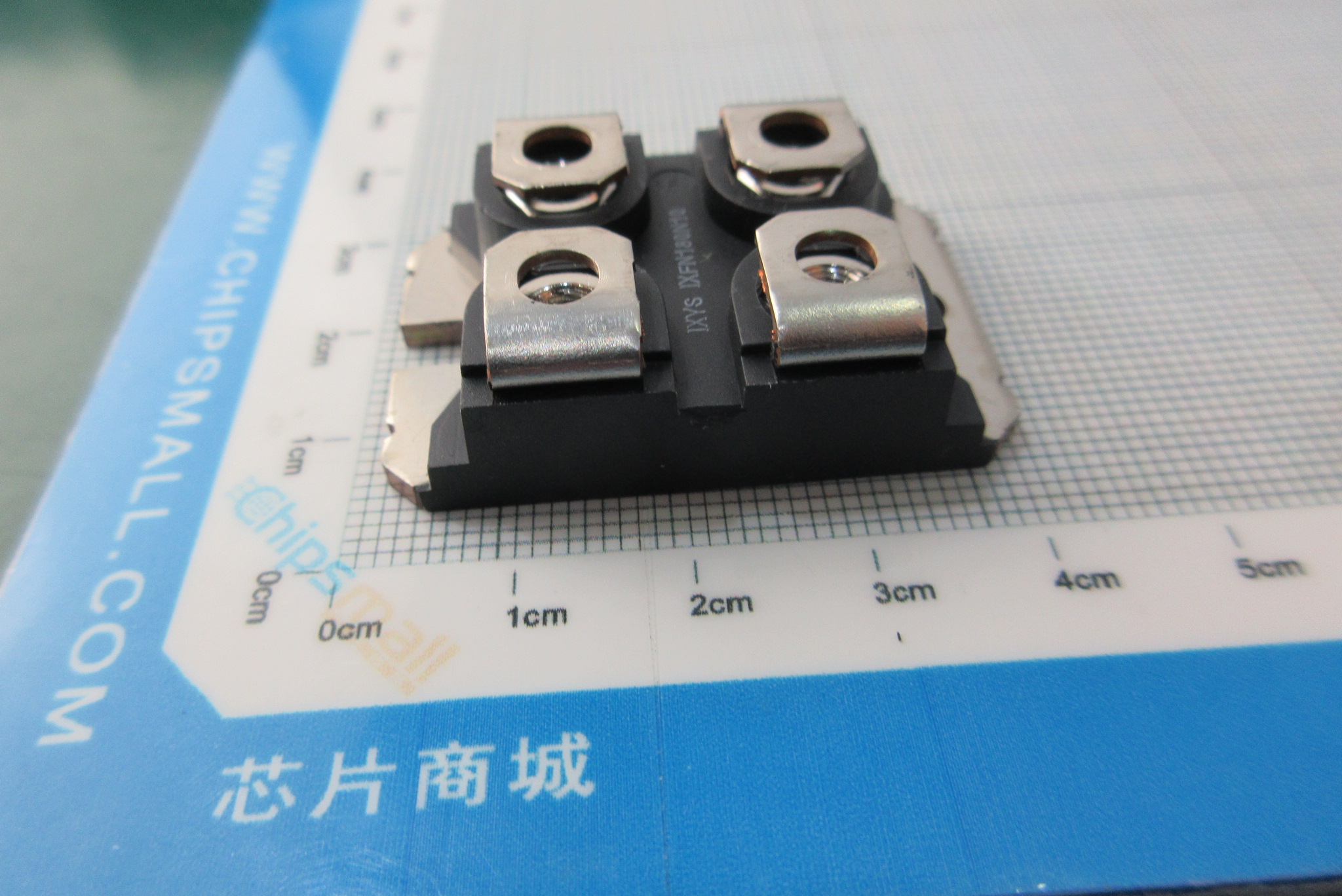

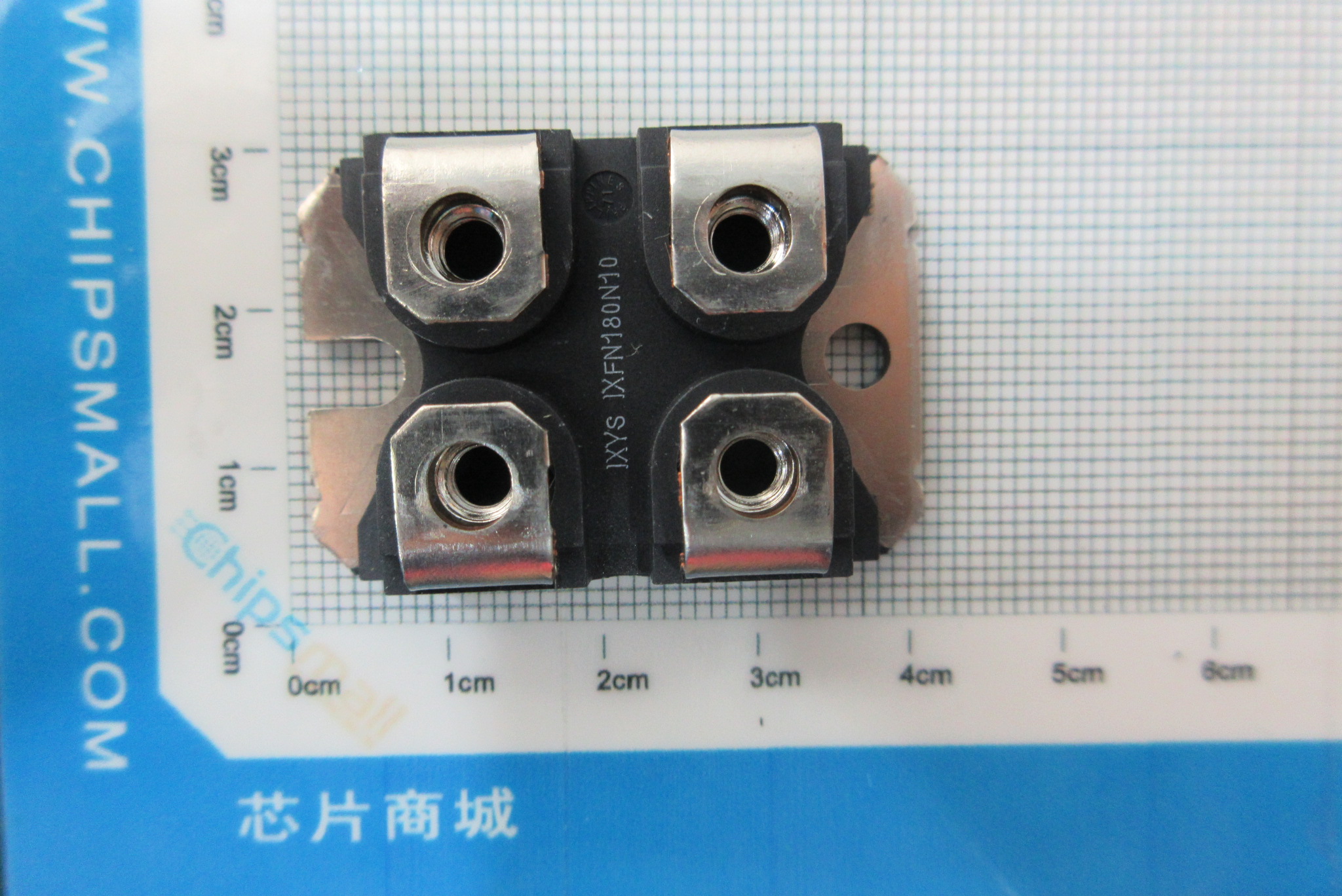

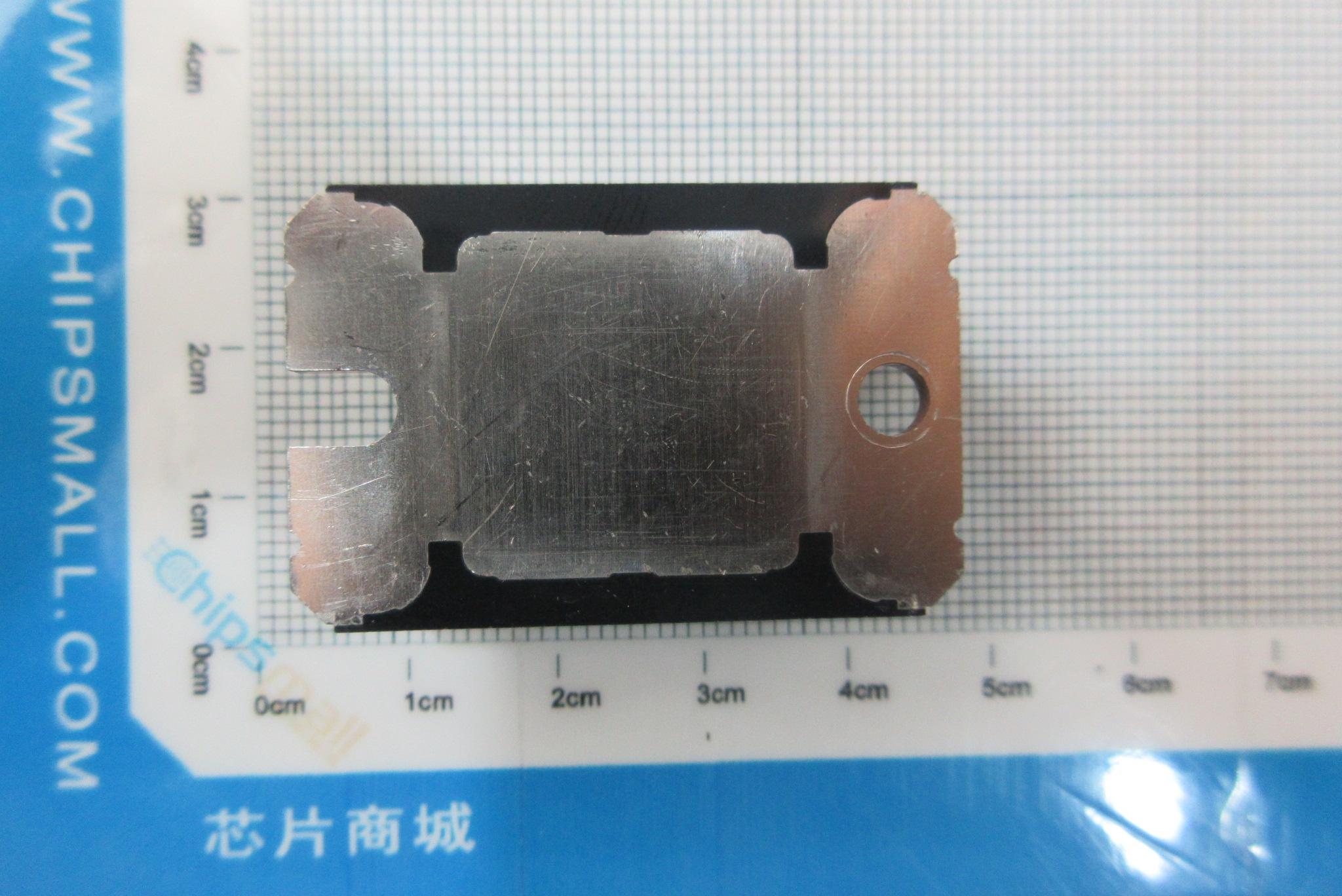

Part No.：IXFN180N10
Category： FETS
Manufacturer：IXYS Corporation
Date Code：
Package Type：SOT-227B
Quantity：50000
Click：4
Update Time：2022-06-17 14:34:21
Description:
| Manufacturer | IXYS Corporation | Manufacturer's Part # | IXFN180N10 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HiPerFET™ | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100V | Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 8 mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 8mA | Gate Charge (Qg) (Max) @ Vgs | 360nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 9100pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 600W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B | Package / Case | SOT-227-4, miniBLOC |
