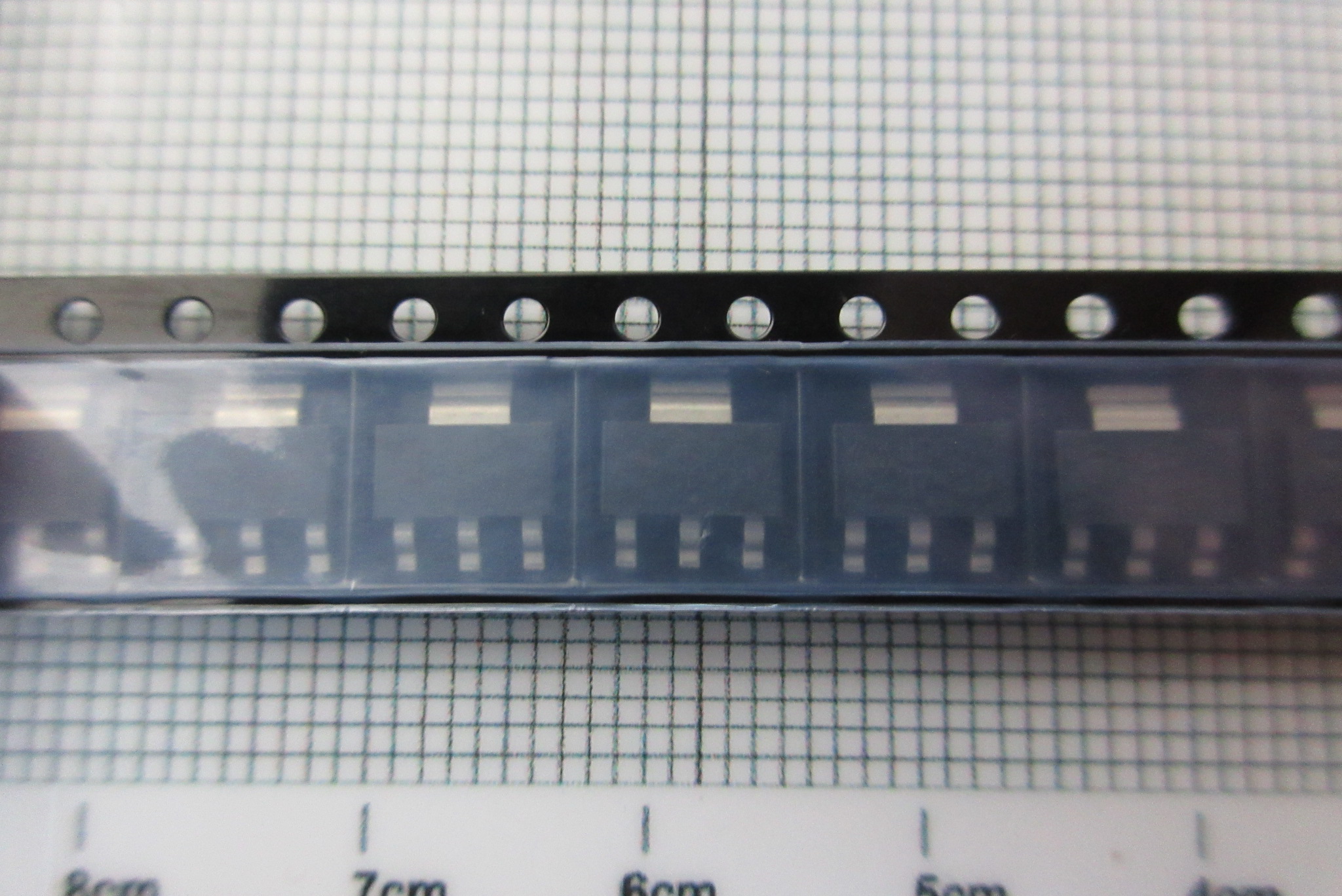

Part No.：NCP1117ST33T3G
Category：PMIC - Energy Metering
Manufacturer：ON Semiconductor
Date Code：
Package Type：SOT223
Quantity：50000
Click：33
Update Time：2022-07-06 14:19:40
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NCP1117ST33T3G |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Active |
| Output Configuration | Positive | Output Type | Fixed |
| Number of Regulators | 1 | Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA | Current - Output | 1A |
| Current - Quiescent (Iq) | 10mA | Current - Supply (Max) | - |
| PSRR | 64dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
