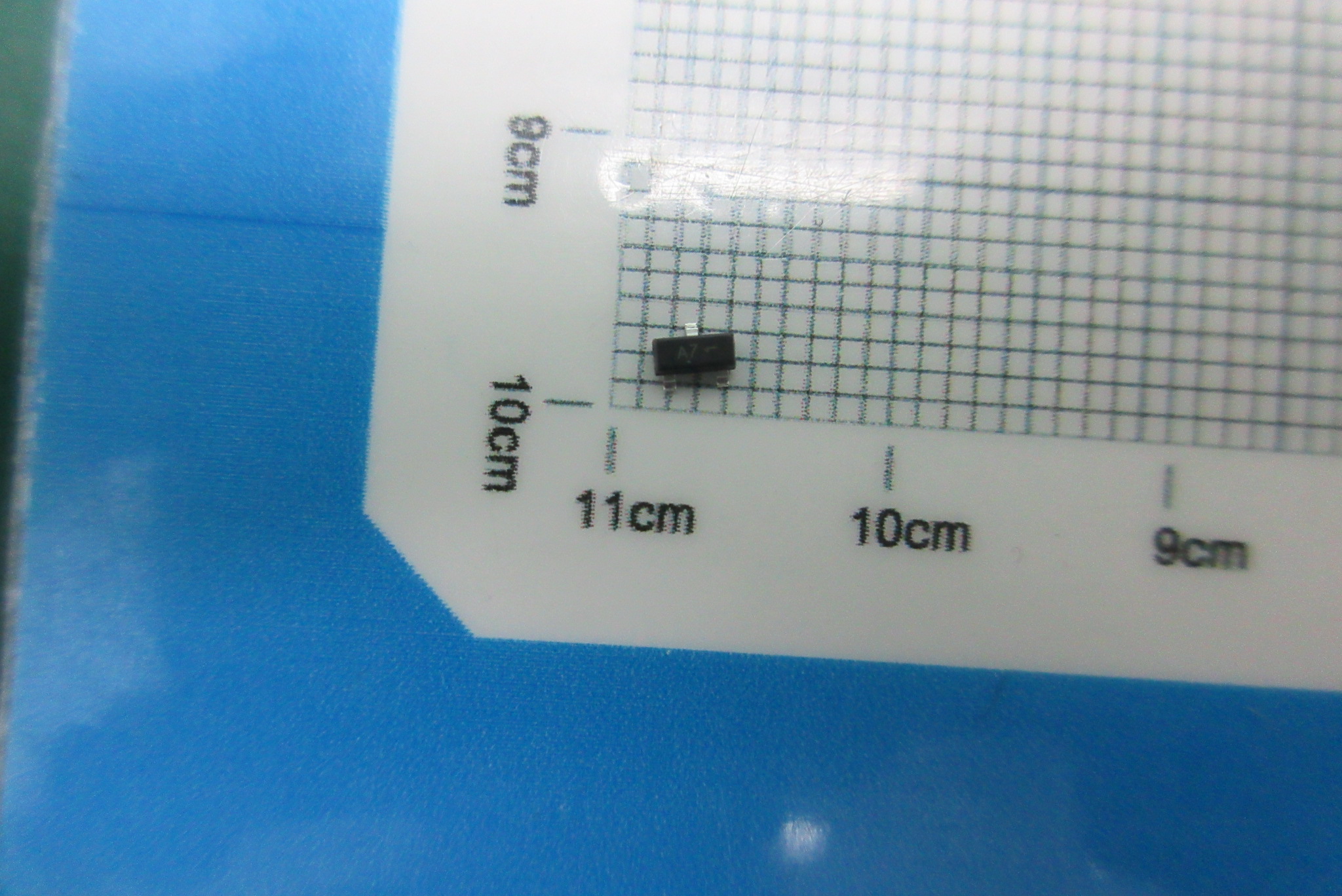

Part No.：BAV99LT1G
Category：Rectifier
Manufacturer：ON Semiconductor
Date Code：
Package Type：SOT23-3
Quantity：50000
Click：15
Update Time：2022-07-12 16:00:37
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | BAV99LT1G |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Arrays |
| Series | - | Part Status | Active |
| Diode Configuration | 1 Pair Series Connection | Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100V | Current - Average Rectified (Io) (per Diode) | 215mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6ns | Current - Reverse Leakage @ Vr | 2.5µA @ 70V |
| Operating Temperature - Junction | -65°C ~ 150°C | Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | Supplier Device Package | SOT-23-3 (TO-236) |
