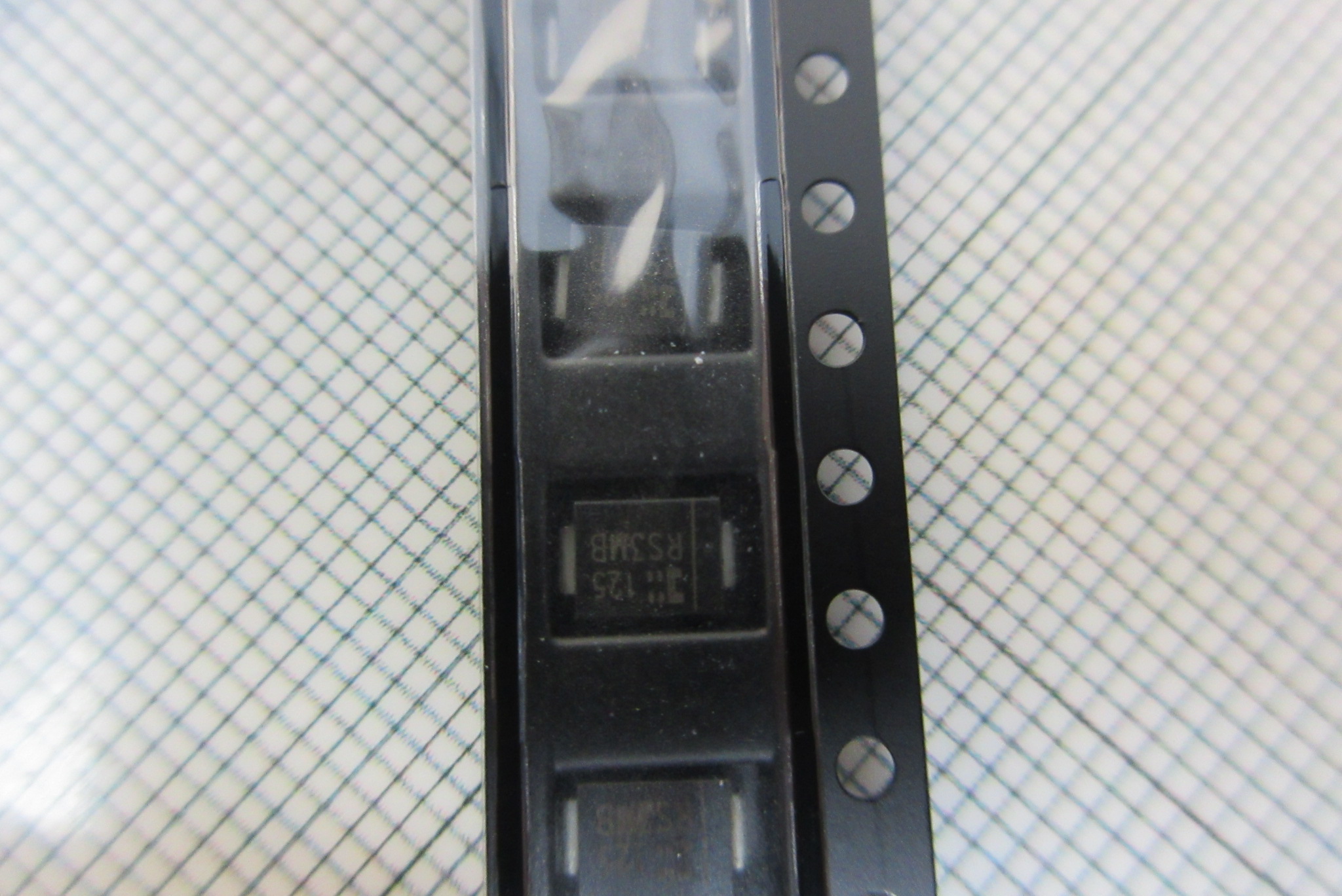

Part No.：RS3MB-13-F
Category：Rectifier
Manufacturer：Diodes Incorporated
Date Code：
Package Type：DO-214AA
Quantity：50000
Click：43
Update Time：2022-07-15 17:22:56
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | RS3MB-13-F |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Single |
| Series | - | Part Status | Active |
| Diode Type | Standard | Voltage - DC Reverse (Vr) (Max) | 1000V |
| Current - Average Rectified (Io) | 3A | Voltage - Forward (Vf) (Max) @ If | 1.3V @ 3A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr) | 500ns |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V | Capacitance @ Vr, F | 50pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB | Operating Temperature - Junction | -65°C ~ 150°C |
