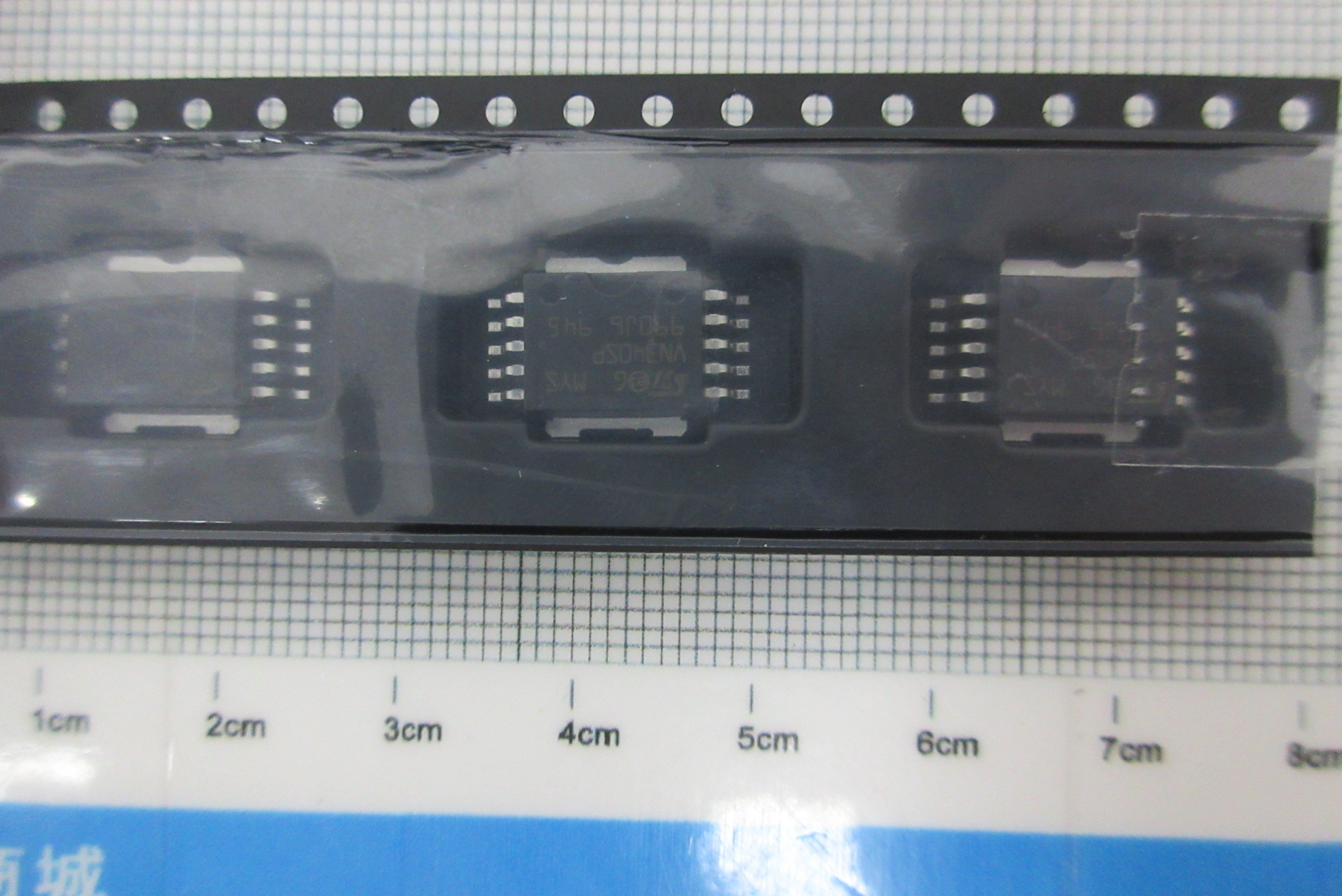

Part No.：VN340SPTR-E
Category：PMIC - Energy Metering
Manufacturer：STMicroelectronics
Date Code：
Package Type：10-PowerSO
Quantity：50000
Click：29
Update Time：2022-07-21 11:37:01
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | VN340SPTR-E |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | - | Part Status | Active |
| Switch Type | General Purpose | Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 | Output Configuration | High Side |
| Output Type | N-Channel | Interface | On/Off |
| Voltage - Load | 10V ~ 36V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA | Rds On (Typ) | 200 mOhm (Max) |
| Input Type | Non-Inverting | Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | PowerSO-10 Exposed Bottom Pad | Supplier Device Package | 10-PowerSO |
