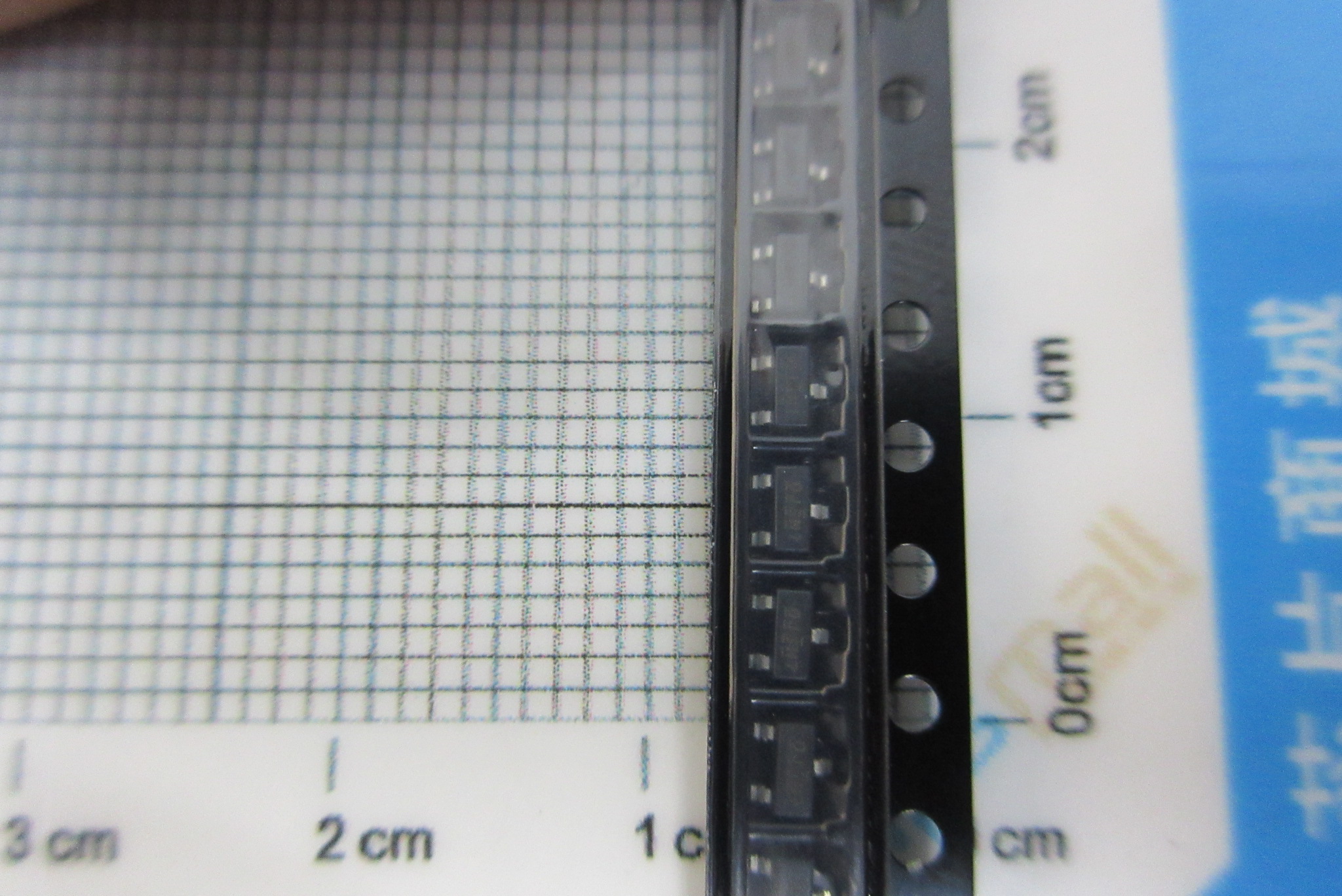

Part No.：IRLML5103TRPBF
Category： FETS
Manufacturer：Infineon Technologies
Date Code：
Package Type：SOT-23
Quantity：50000
Click：2
Update Time：2022-07-22 13:50:45
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRLML5103TRPBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V | Current - Continuous Drain (Id) @ 25°C | 760mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 600 mOhm @ 600mA, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 5.1nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 75pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 540mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 | Package / Case | TO-236-3, SC-59, SOT-23-3 |
