Part No.：DMN5L06DWK-7
Category： FETS
Manufacturer：Diodes Incorporated
Date Code：

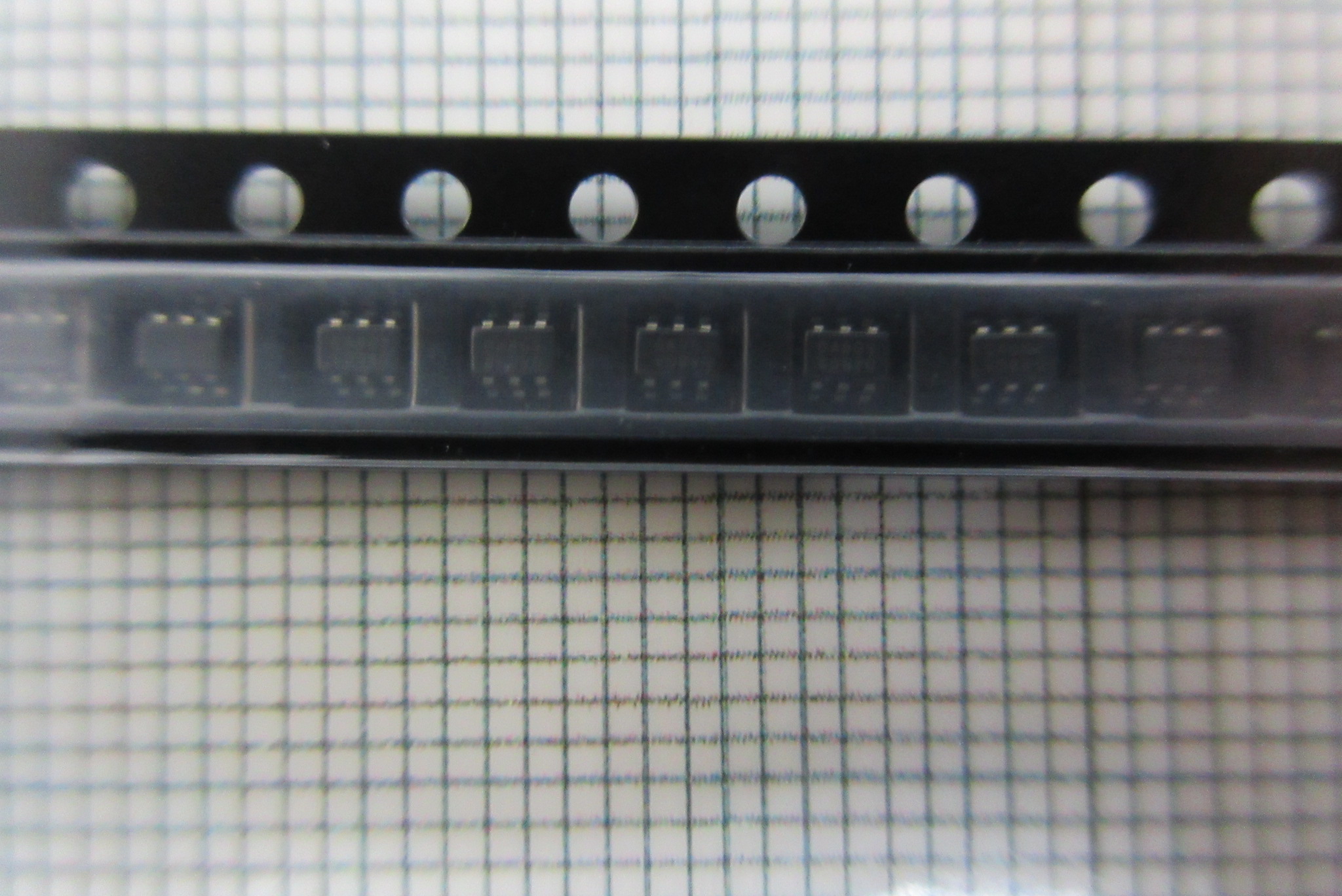

Package Type：SOT-363
Quantity：50000
Click：32
Update Time：2022-07-28 14:20:12
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | DMN5L06DWK-7 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Arrays |
| Series | - | Part Status | Active |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 50V | Current - Continuous Drain (Id) @ 25°C | 305mA |
| Rds On (Max) @ Id, Vgs | 2 Ohm @ 50mA, 5V | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Power - Max | 250mW | Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
