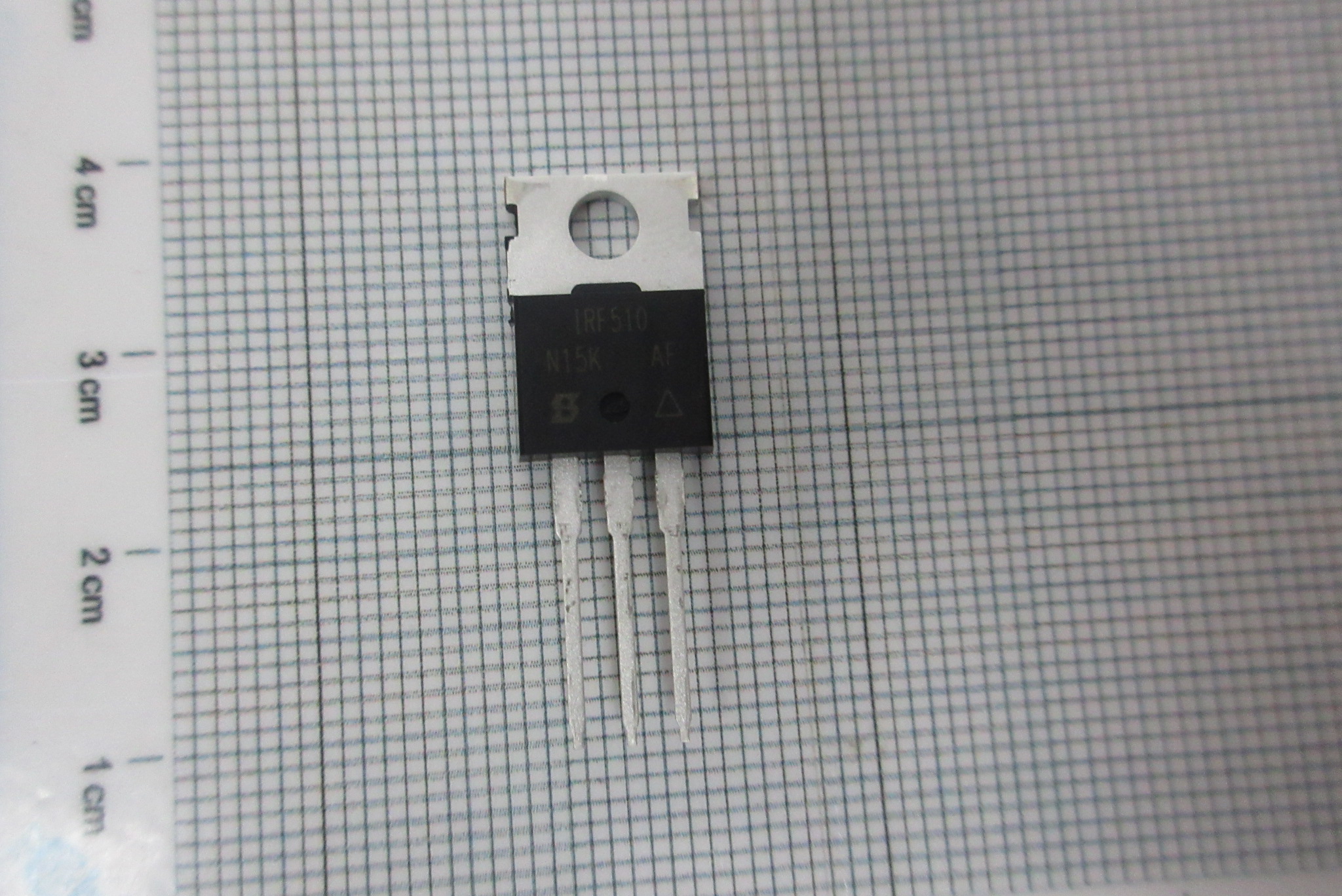

Part No.：IRF510PBF
Category： FETS
Manufacturer：Vishay
Date Code：
Package Type：TO-220-3
Quantity：50000
Click：13
Update Time：2022-07-28 17:43:25
Description:
| Manufacturer | Vishay | Manufacturer's Part # | IRF510PBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100V | Current - Continuous Drain (Id) @ 25°C | 5.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 540 mOhm @ 3.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 8.3nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 43W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB | Package / Case | TO-220-3 |
