Description:

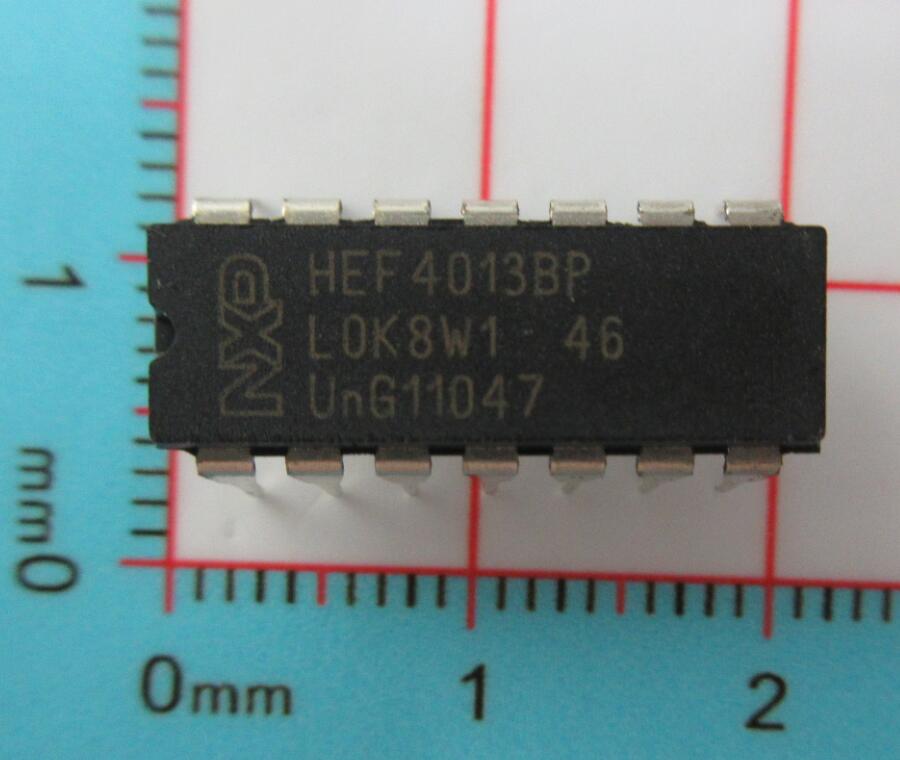

| Manufacturer | NXP Semiconductors | Manufacturer's Part # | HEF4013BP,652 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Flip Flops |
| Series | 4000B | Part Status | Obsolete |
| Function | Set(Preset) and Reset | Type | D-Type |
| Output Type | Differential | Number of Elements | 2 |
| Number of Bits per Element | 1 | Clock Frequency | 40MHz |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF | Trigger Type | Positive Edge |
| Current - Output High, Low | 3.4mA, 3.4mA | Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Iq) | 4µA | Input Capacitance | 7.5pF |
| Operating Temperature | -40°C ~ 125°C (TA) | Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
