Description:

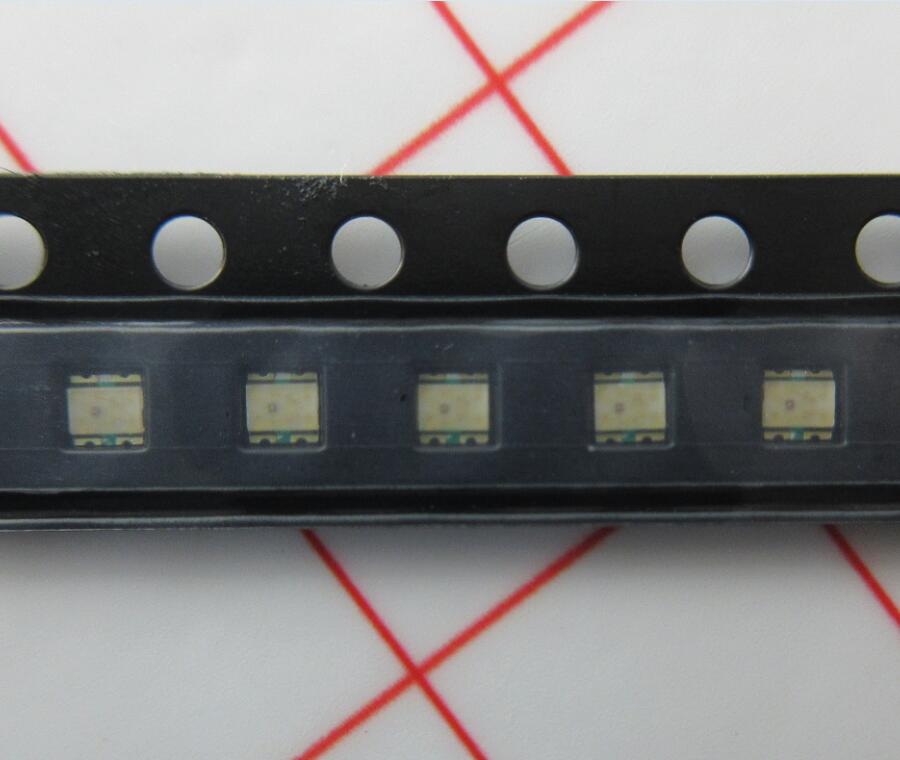

| Manufacturer | Lite-On, Inc. | Manufacturer's Part # | LTST-C19HE1WT |
|---|---|---|---|
| Categories | Optoelectronics | Sub-Categories | LED Indication - Discrete |
| Series | - | Part Status | Active |
| Color | Red, Green, Blue (RGB) | Configuration | Common Anode |
| Lens Color | White | Lens Transparency | Diffused |
| Millicandela Rating | 112.5mcd Red, 281mcd Green, 104mcd Blue | Lens Style | Rectangle with Flat Top |
| Lens Size | 1.15mm x 1.60mm | Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.35V Green, 3.35V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Viewing Angle | 130° |
| Mounting Type | Surface Mount | Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue | Features | - |
| Package / Case | 0606 (1616 Metric) | Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.60mm W | Height (Max) | 0.35mm |
