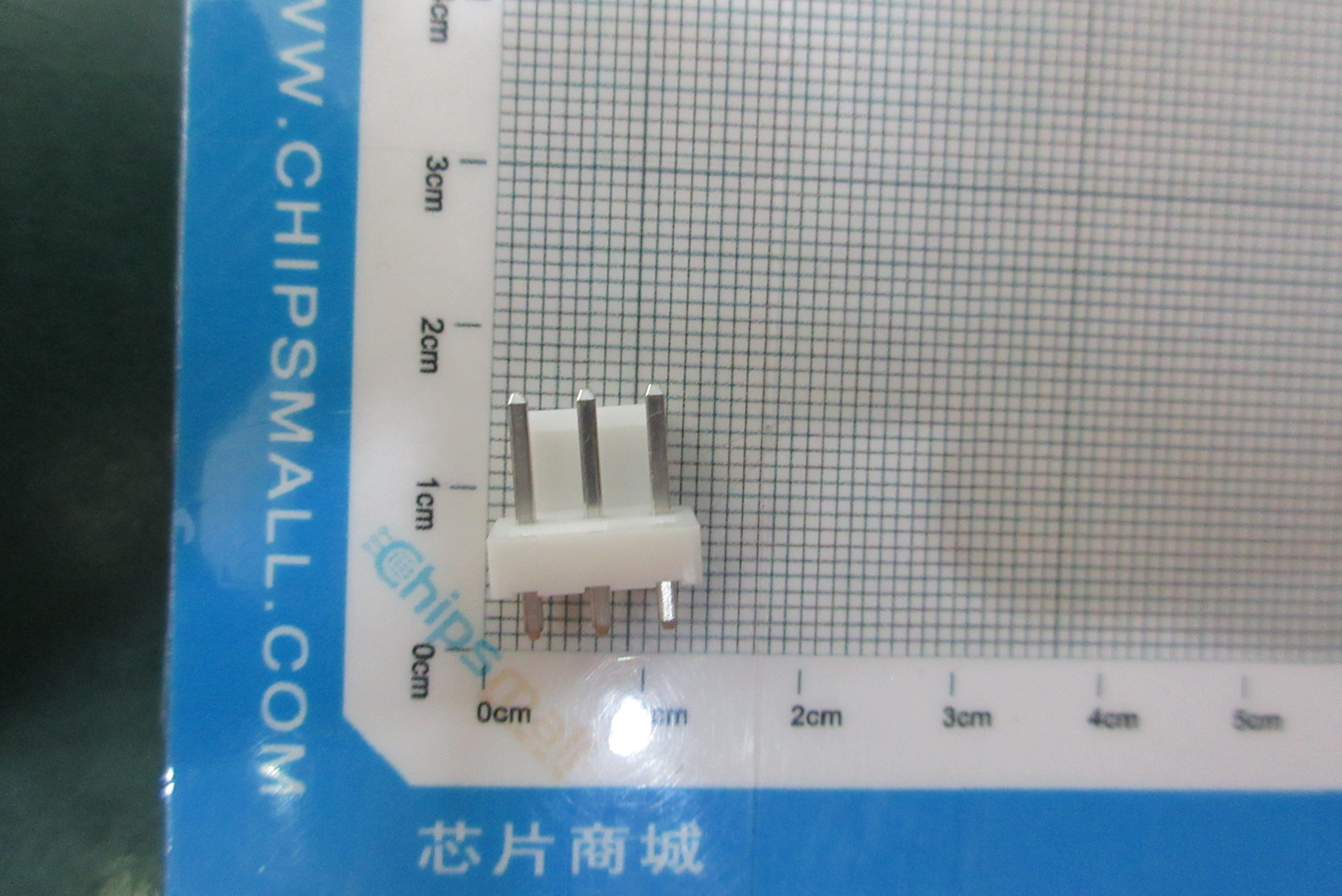

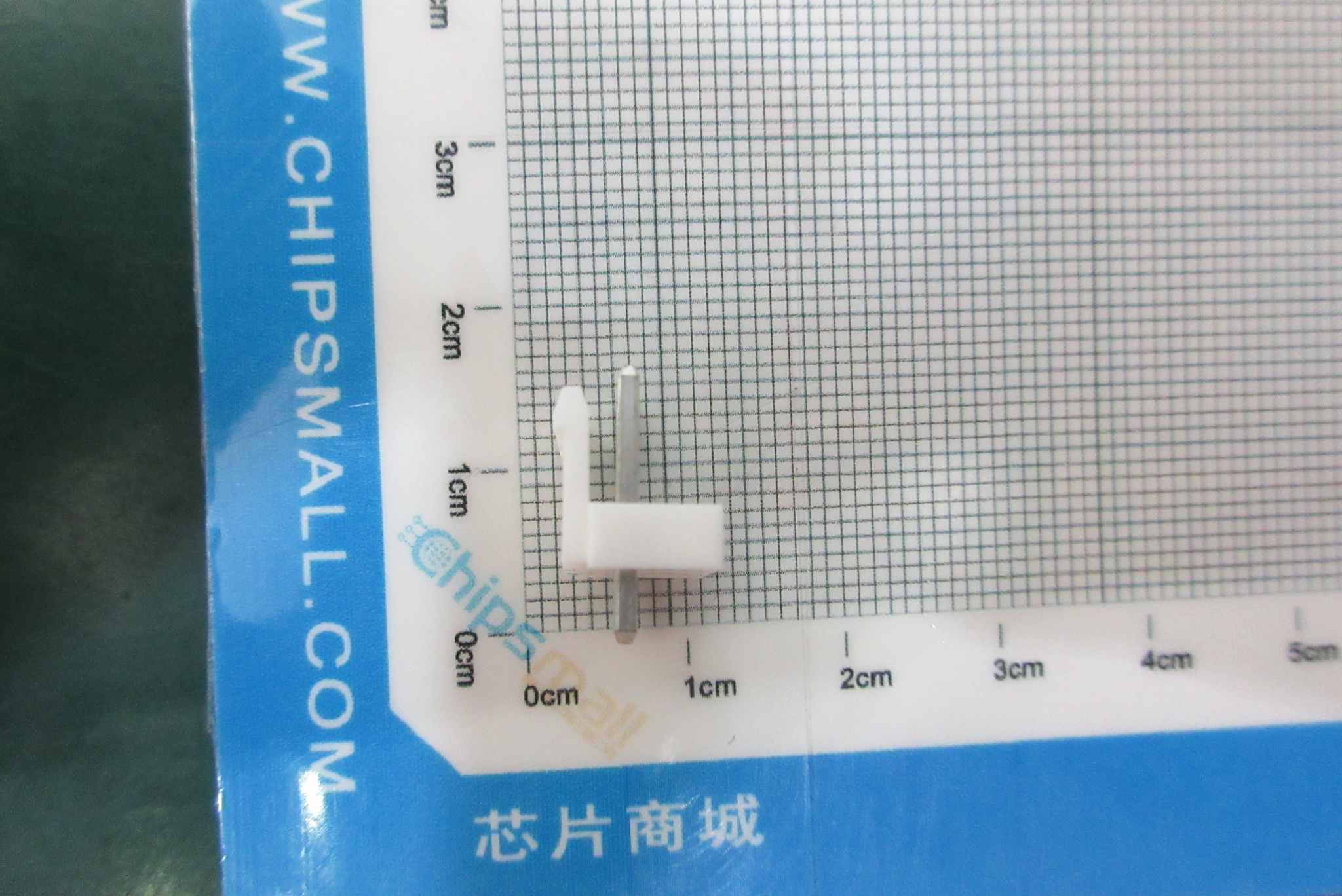

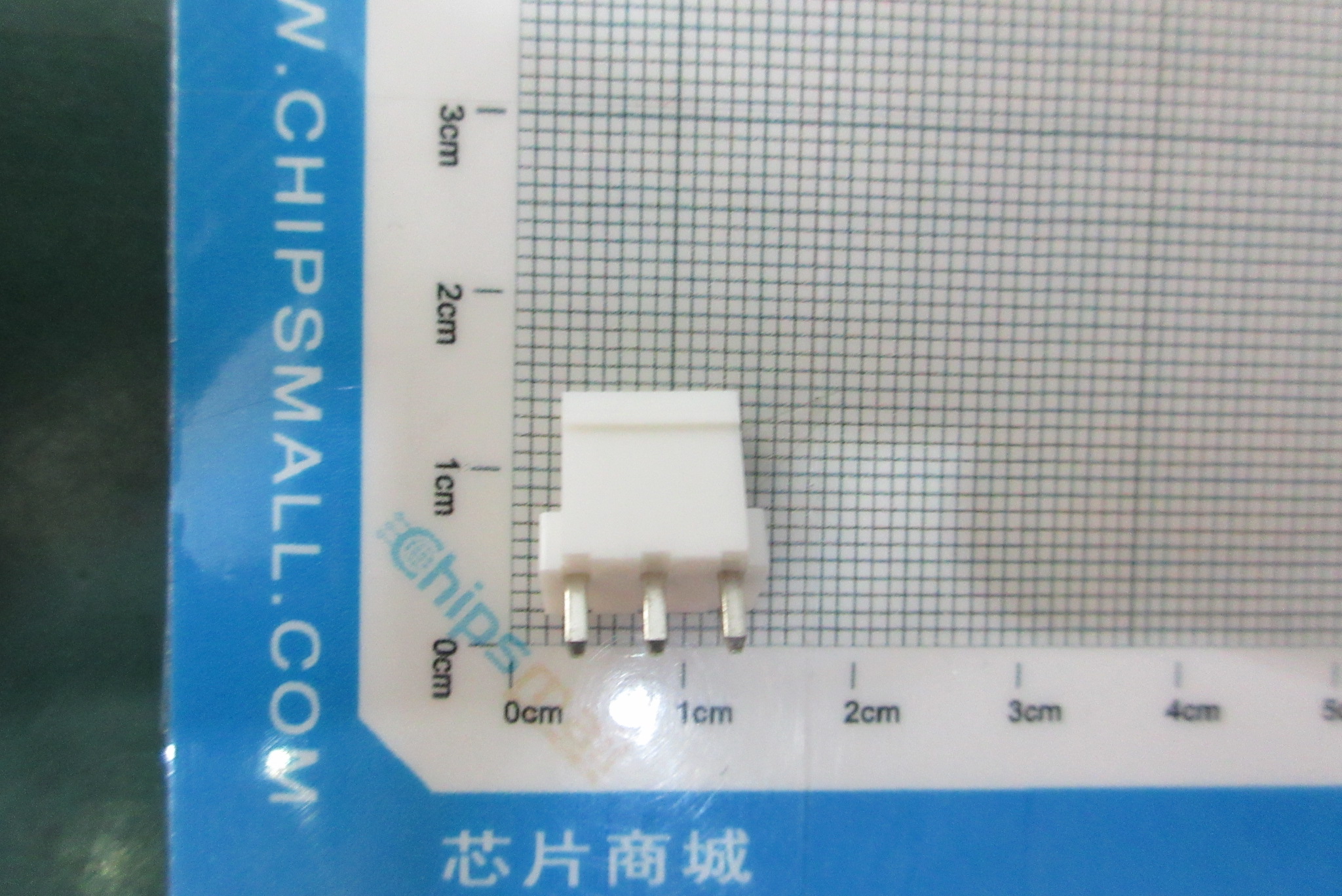

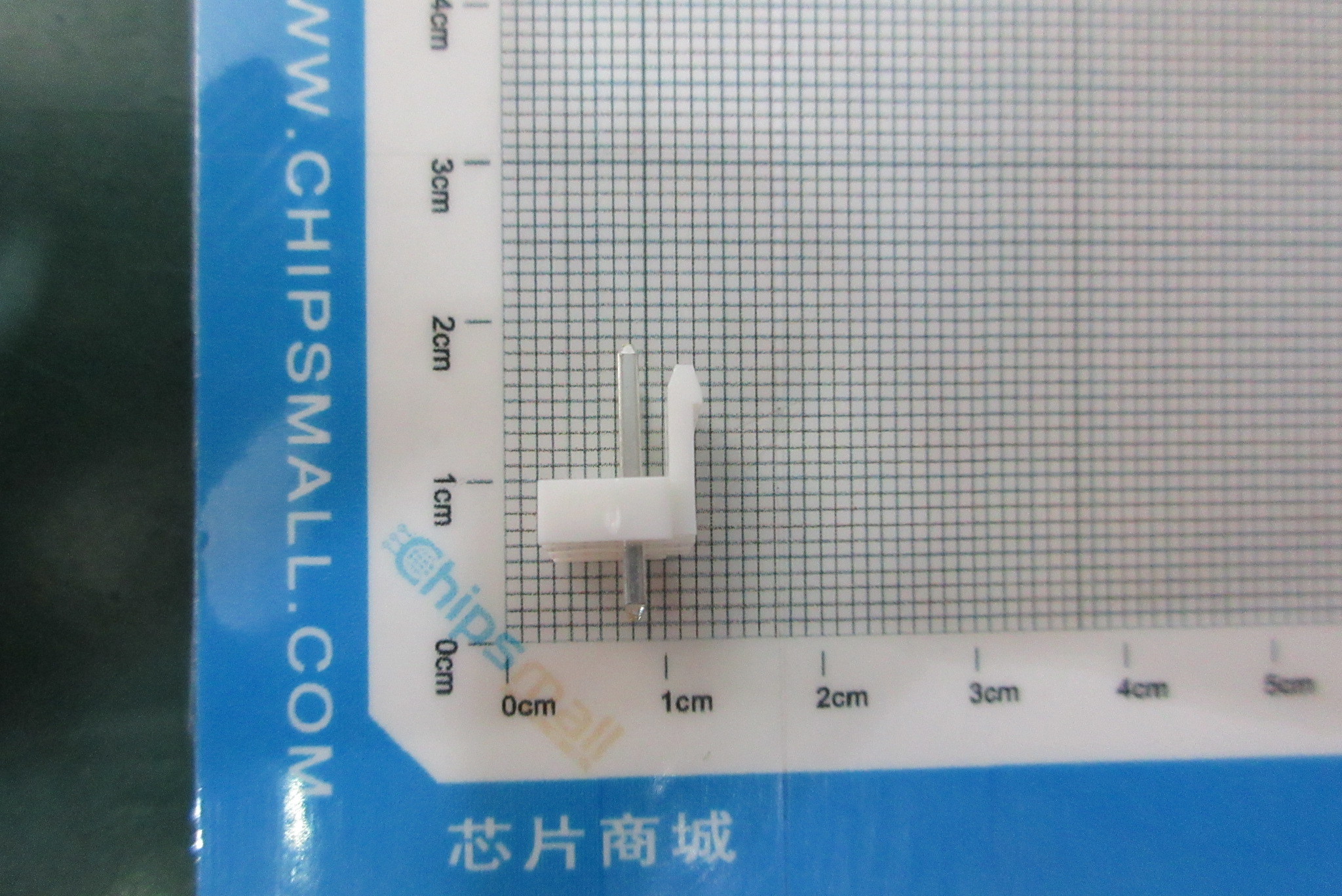

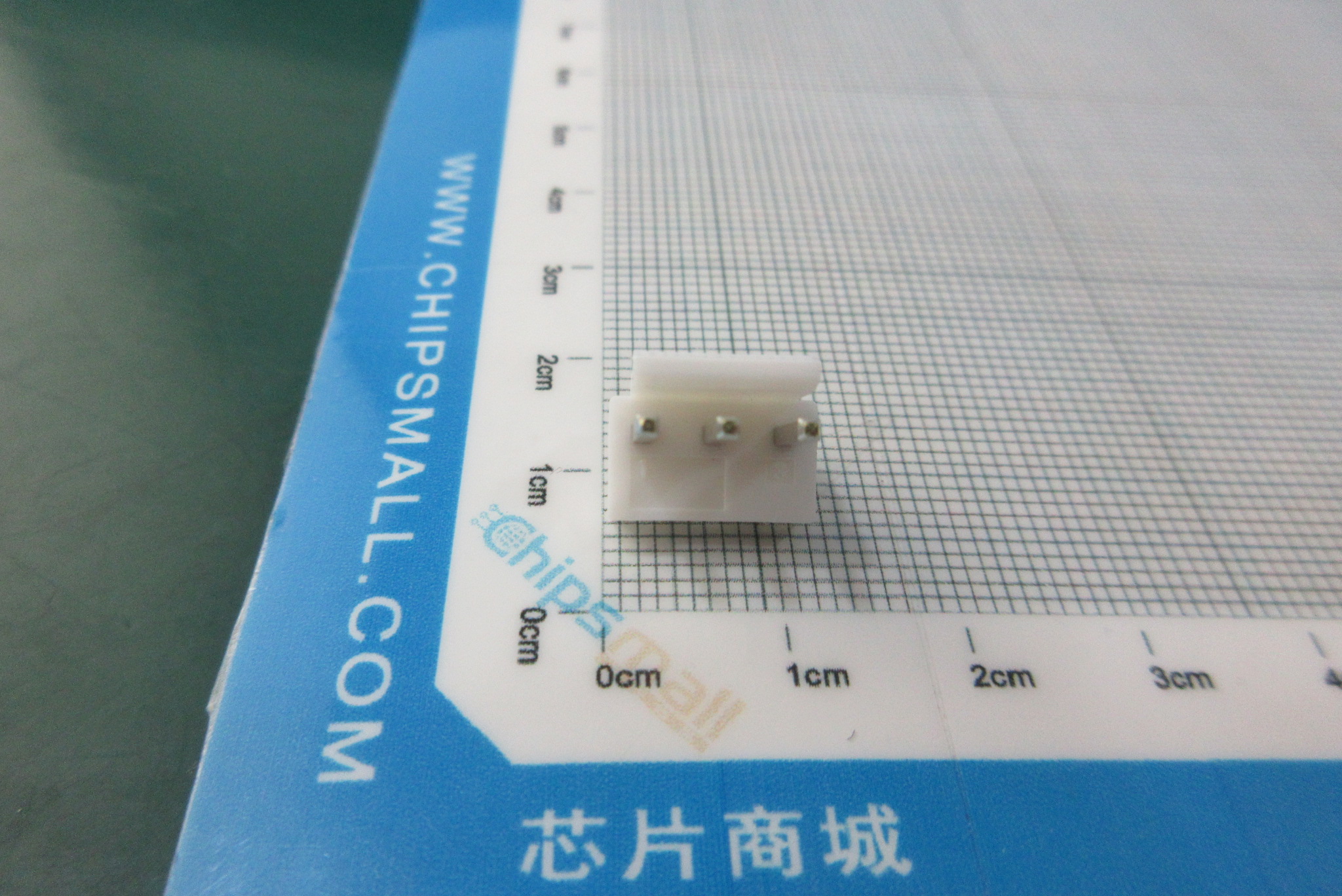

Part No.：B3P-VH(LF)(SN)
Category：Rectangular Connectors - Housings
Manufacturer：JST
Date Code：
Package Type：-
Quantity：50000
Click：6
Update Time：2022-06-30 14:22:53
Description:
| Manufacturer | JST | Manufacturer's Part # | B3P-VH(LF)(SN) |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | VH | Part Status | Active |
| Connector Type | Header | Contact Type | Male Pin |
| Pitch - Mating | 0.156" (3.96mm) | Number of Positions | 3 |
| Number of Rows | 1 | Row Spacing - Mating | - |
| Number of Positions Loaded | All | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Mounting Type | Through Hole |
| Termination | Solder | Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.303" (7.70mm) | Contact Length - Post | 0.146" (3.70mm) |
| Overall Contact Length | 0.575" (14.60mm) | Insulation Height | 0.370" (9.40mm) |
| Contact Shape | Square | Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Material | Brass | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - | Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - | Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural | Current Rating | 10A |
| Voltage Rating | 250V |
