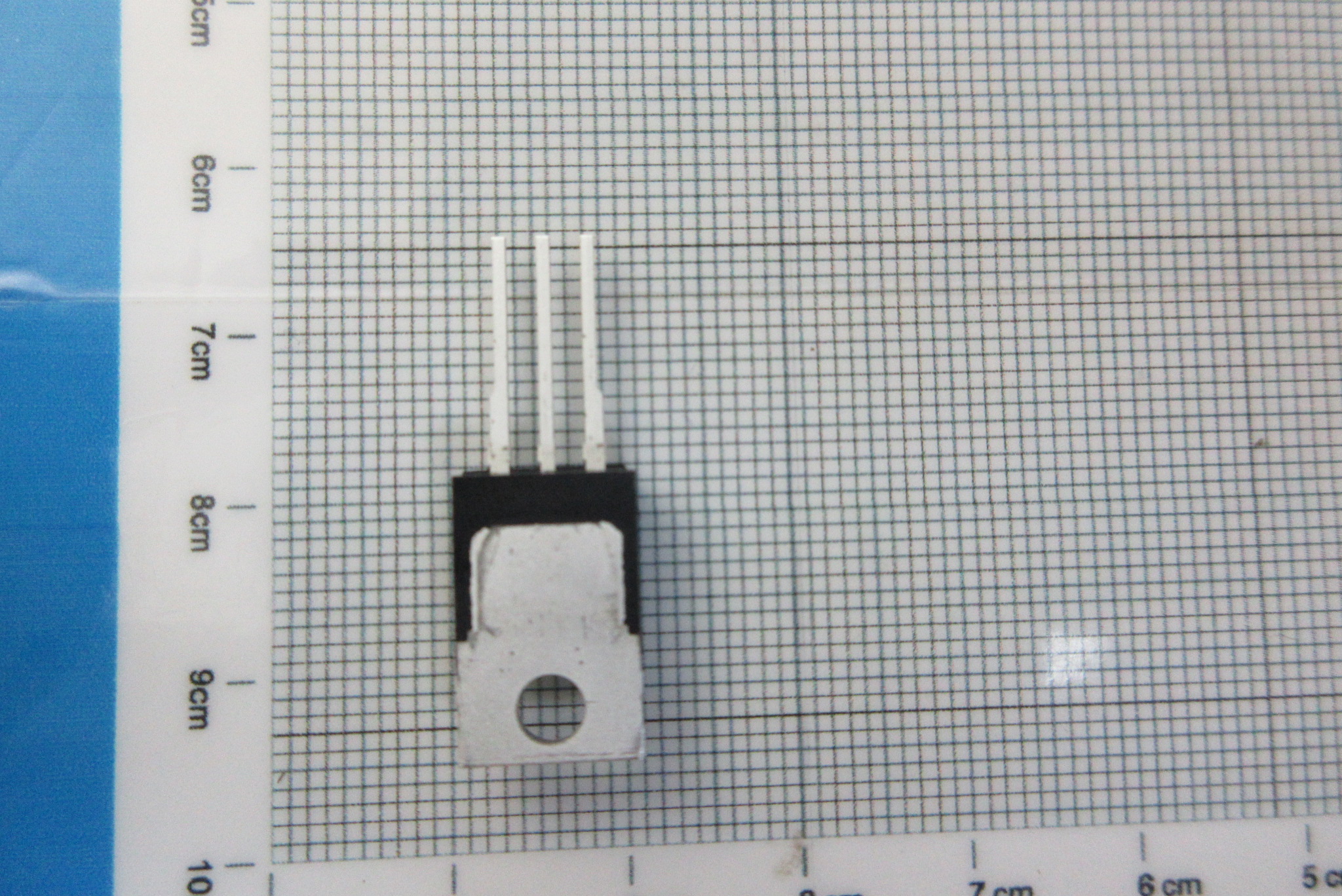

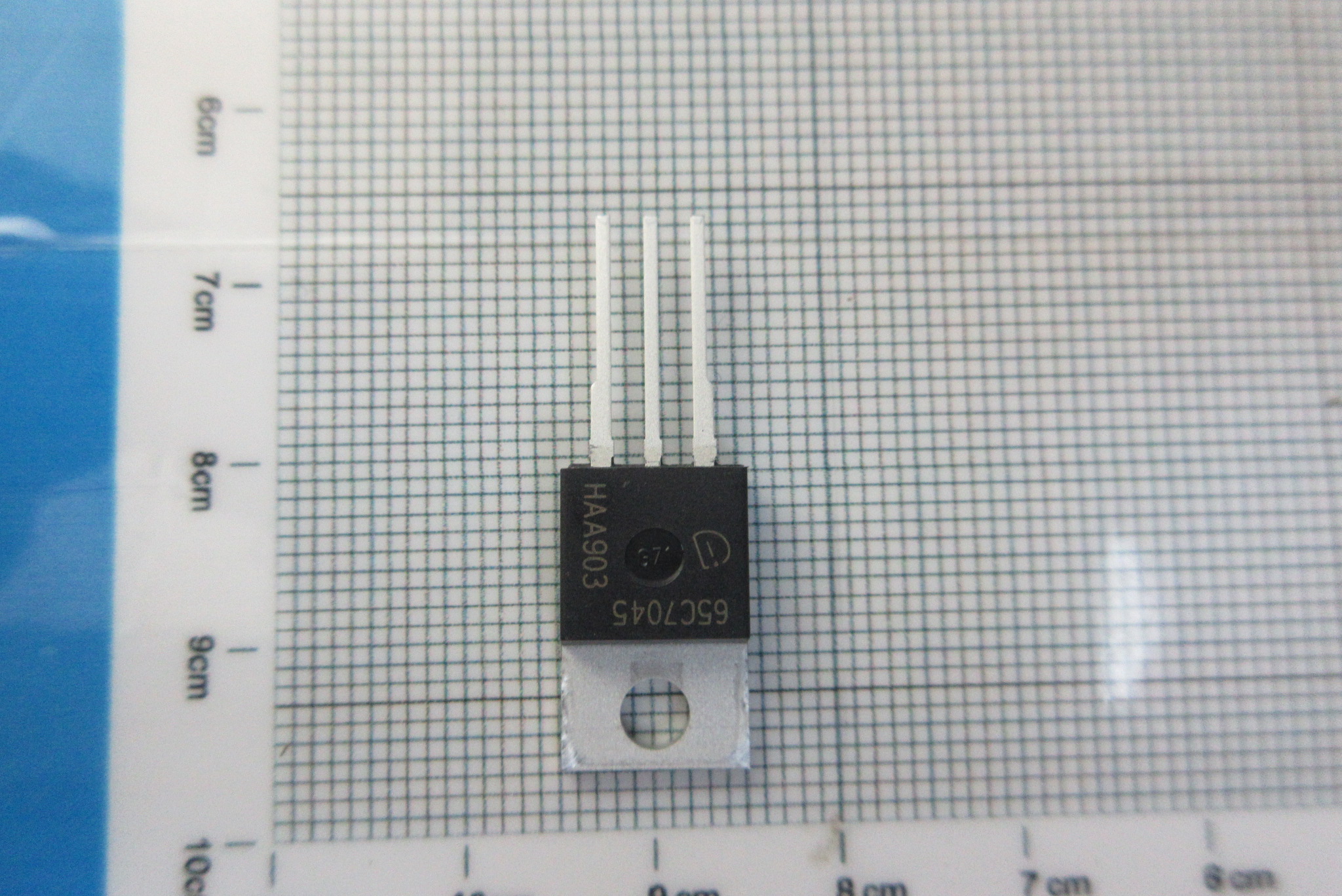

Part No.:IPP65R045C7XKSA1
Category: FETS
Manufacturer:Infineon Technologies
Date Code:
Package Type:TO-220-3
Quantity:100000
Click:7
Update Time:2022-07-05 11:08:40
Description:
Manufacturer | Infineon Technologies | Manufacturer's Part # | IPP65R045C7XKSA1 |
---|---|---|---|
Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
Series | CoolMOS™ C7 | Part Status | Active |
FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 650V | Current - Continuous Drain (Id) @ 25°C | 46A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 45 mOhm @ 24.9A, 10V |
Vgs(th) (Max) @ Id | 4V @ 1.25mA | Gate Charge (Qg) (Max) @ Vgs | 93nC @ 10V |
Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 4340pF @ 400V |
FET Feature | - | Power Dissipation (Max) | 227W (Tc) |
Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
Supplier Device Package | PG-TO220-3 | Package / Case | TO-220-3 |
