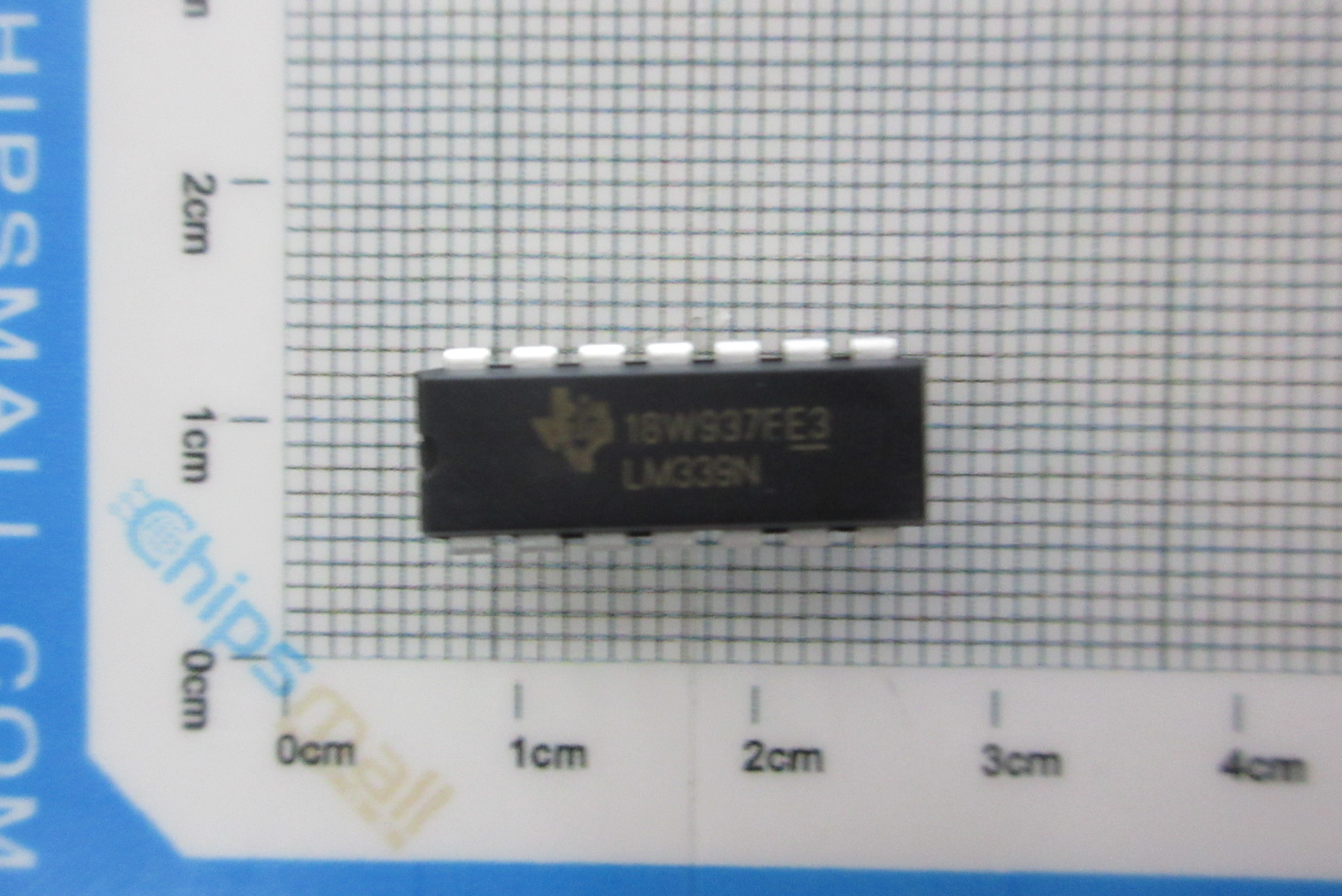

Part No.：LM339N
Category：Comparator
Manufacturer：Texas
Date Code：
Package Type：14-DIP
Quantity：50000
Click：41
Update Time：2022-07-26 11:37:54
Description:
| Manufacturer | Texas | Manufacturer's Part # | LM339N |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Linear - Comparators |
| Series | - | Part Status | Active |
| Type | Differential | Number of Elements | 4 |
| Output Type | CMOS, MOS, Open-Collector, TTL | Voltage - Supply, Single/Dual (±) | 2V ~ 30V, ±1V ~ 15V |
| Voltage - Input Offset (Max) | 5mV @ 30V | Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 20mA | Current - Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | - | Propagation Delay (Max) | - |
| Hysteresis | - | Operating Temperature | 0°C ~ 70°C |
| Package / Case | 14-DIP (0.300", 7.62mm) | Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
