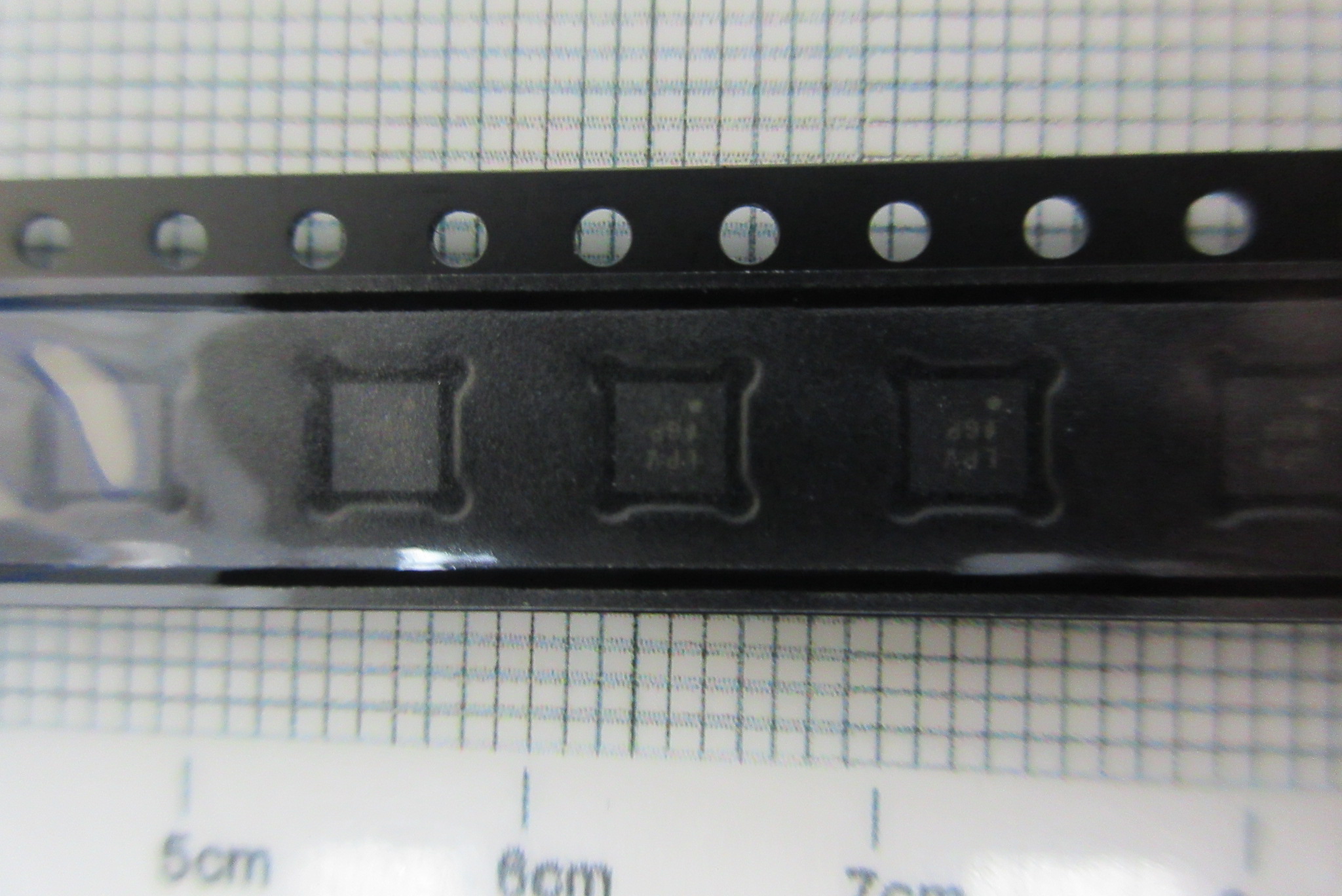

Part No.：ADM7170ACPZ-5.0-R7
Category：PMIC - Energy Metering
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：8-WFDFN
Quantity：50000
Click：40
Update Time：2022-07-28 11:27:56
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADM7170ACPZ-5.0-R7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Active |
| Output Configuration | Positive | Output Type | Fixed |
| Number of Regulators | 1 | Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 500mA |
| Current - Quiescent (Iq) | 2mA | Current - Supply (Max) | 5.1mA |
| PSRR | - | Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
