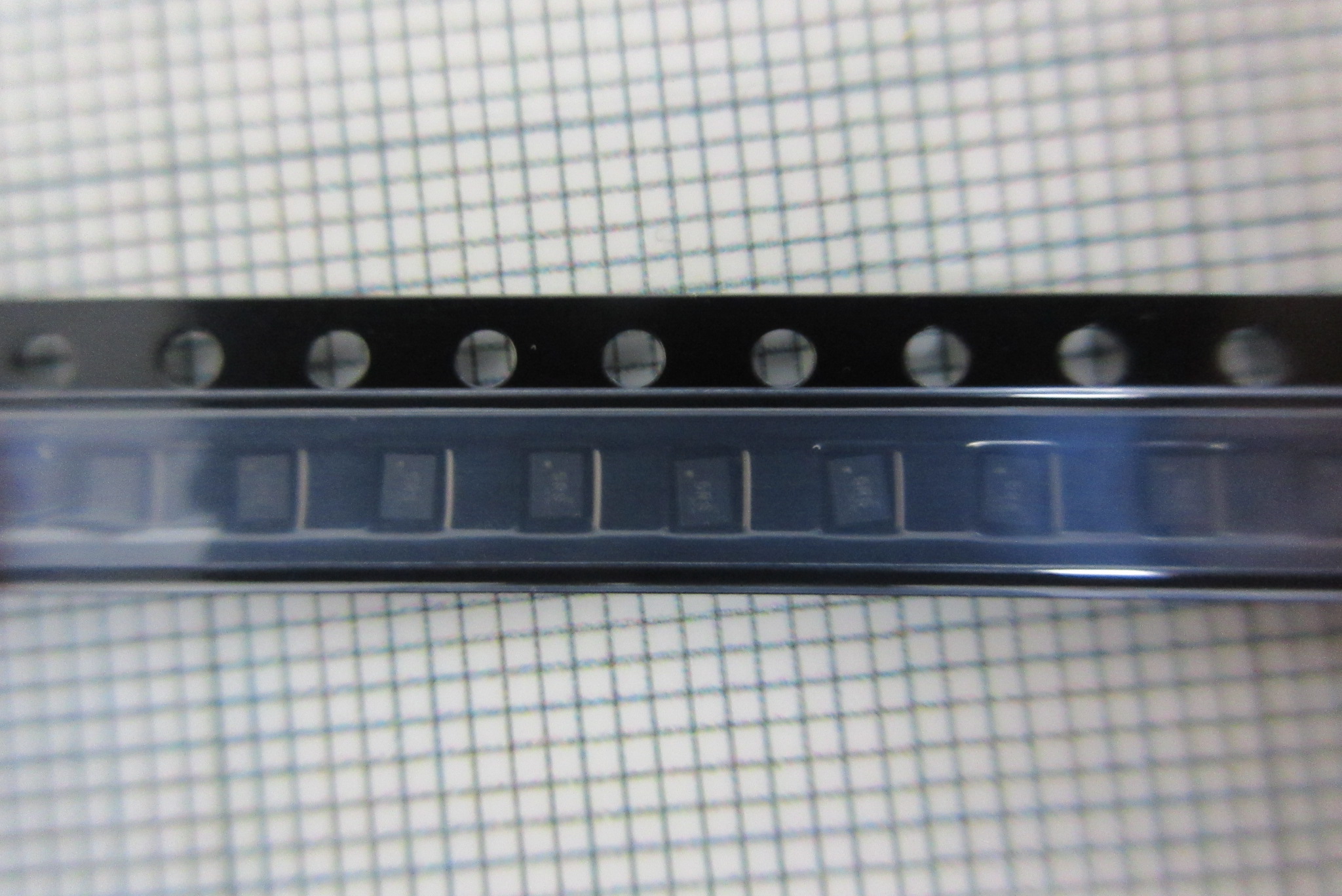

Part No.：TPD4F003DQDR
Category：Filters
Manufacturer：Texas
Date Code：
Package Type：8-WFDFN
Quantity：50000
Click：12
Update Time：2022-08-01 18:16:46
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPD4F003DQDR |
|---|---|---|---|
| Categories | Filters | Sub-Categories | EMI/RFI Filters (LC, RC Networks) |
| Series | TPD | Part Status | Active |
| Type | Low Pass | Filter Order | 2nd |
| Technology | RC (Pi) | Number of Channels | 4 |
| Center / Cutoff Frequency | 200MHz (Cutoff) | Attenuation Value | 25dB @ 1GHz |
| Resistance - Channel (Ohms) | 100 | Current | - |
| Values | R = 100 Ohms, C = 8.5pF | ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C | Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - | Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | Size / Dimension | 0.067" L x 0.053" W (1.70mm x 1.35mm) |
| Height | 0.031" (0.79mm) |
