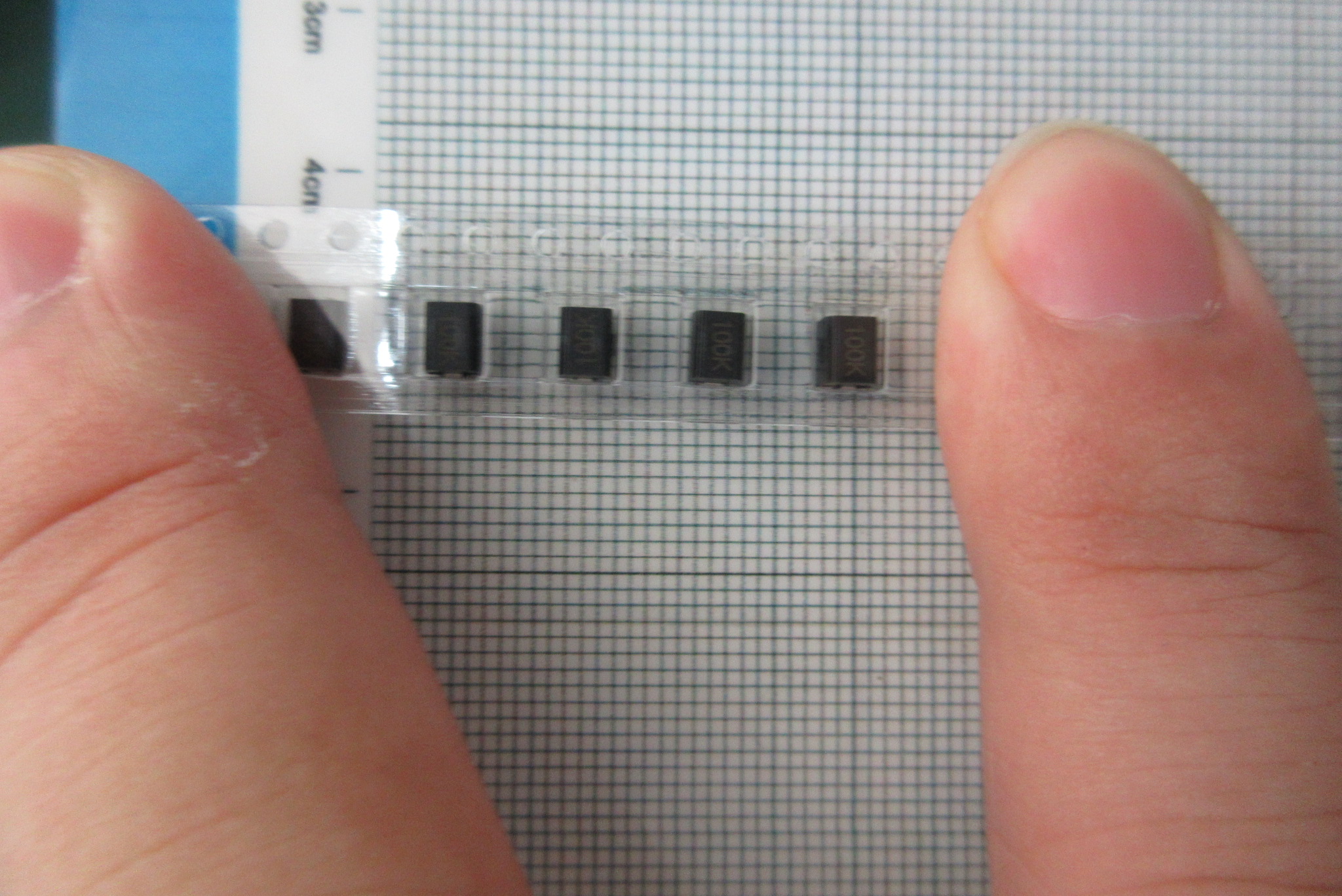

Part No.：CM453232-100KL
Category：Fixed Inductors
Manufacturer：Bourns
Date Code：
Package Type：1812
Quantity：50000
Click：22
Update Time：2022-07-01 10:37:19
Description:
| Manufacturer | Bourns | Manufacturer's Part # | CM453232-100KL |
|---|---|---|---|
| Categories | Inductors, Coils, Chokes | Sub-Categories | Fixed Inductors |
| Series | CM45 | Part Status | Active |
| Type | Wirewound | Material - Core | Ferrite |
| Inductance | 10µH | Tolerance | ±10% |
| Current Rating | 250mA | Current - Saturation | - |
| Shielding | Unshielded | DC Resistance (DCR) | 1.6 Ohm Max |
| Q @ Freq | 50 @ 2.52MHz | Frequency - Self Resonant | 20MHz |
| Ratings | - | Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52MHz | Features | - |
| Mounting Type | Surface Mount | Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
