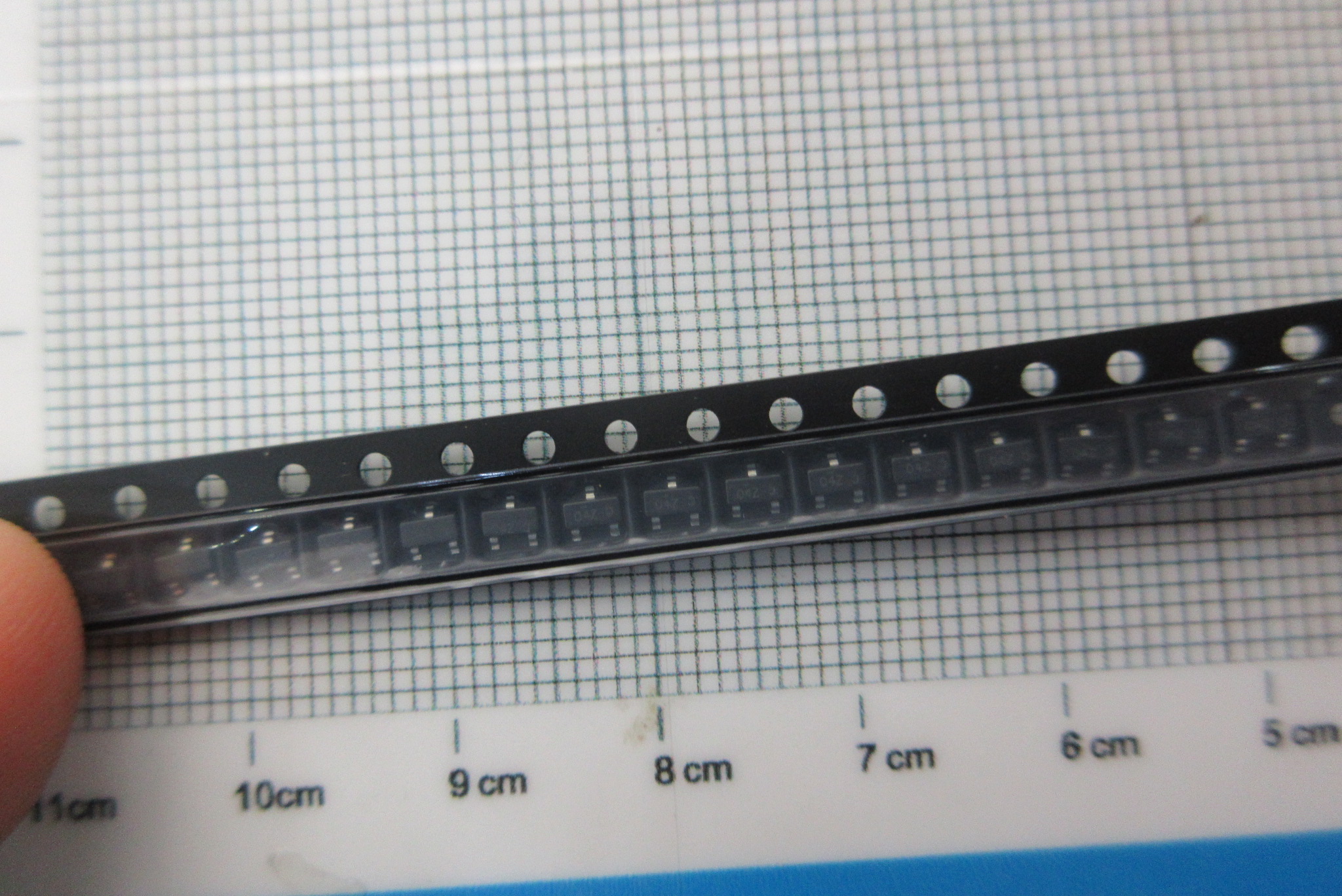

Part No.：FDN304PZ
Category： FETS
Manufacturer：ON Semiconductor
Date Code：
Package Type：SSOT-3
Quantity：50000
Click：2
Update Time：2022-07-01 11:46:43
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FDN304PZ |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | PowerTrench® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V | Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Rds On (Max) @ Id, Vgs | 52 mOhm @ 2.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 20nC @ 4.5V |
| Vgs (Max) | ±8V | Input Capacitance (Ciss) (Max) @ Vds | 1310pF @ 10V |
| FET Feature | - | Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | SuperSOT-3 | Package / Case | TO-236-3, SC-59, SOT-23-3 |
