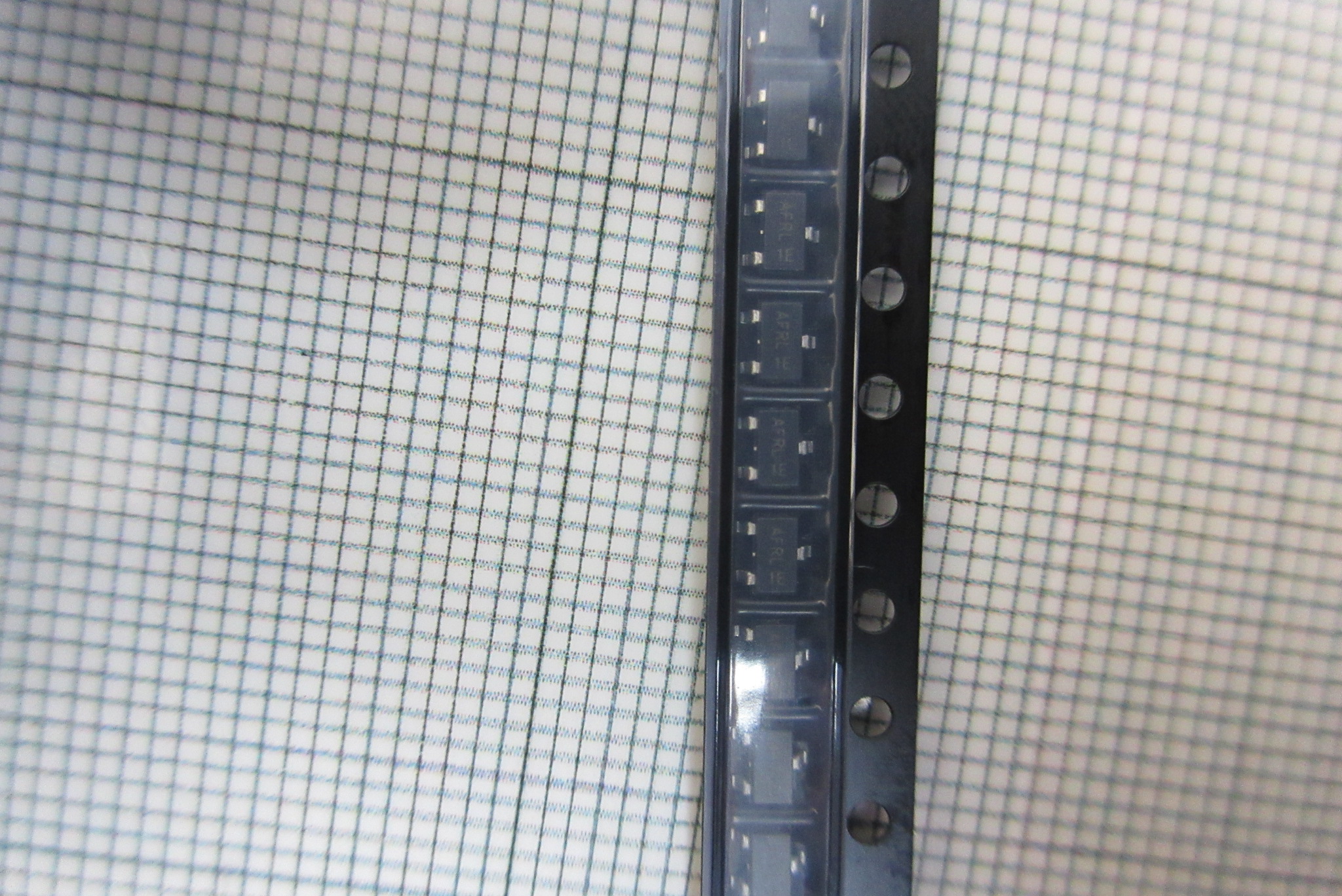

Part No.：AO3415
Category： FETS
Manufacturer：Alpha and Omega Semiconductor, Inc
Date Code：
Package Type：SOT23
Quantity：50000
Click：41
Update Time：2022-07-08 10:27:49
Description:
| Manufacturer | Alpha and Omega Semiconductor, Inc. | Manufacturer's Part # | AO3415 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V | Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Rds On (Max) @ Id, Vgs | 43 mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 17.2nC @ 4.5V |
| Vgs (Max) | ±8V | Input Capacitance (Ciss) (Max) @ Vds | 1450pF @ 10V |
| FET Feature | - | Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3L | Package / Case | TO-236-3, SC-59, SOT-23-3 |
