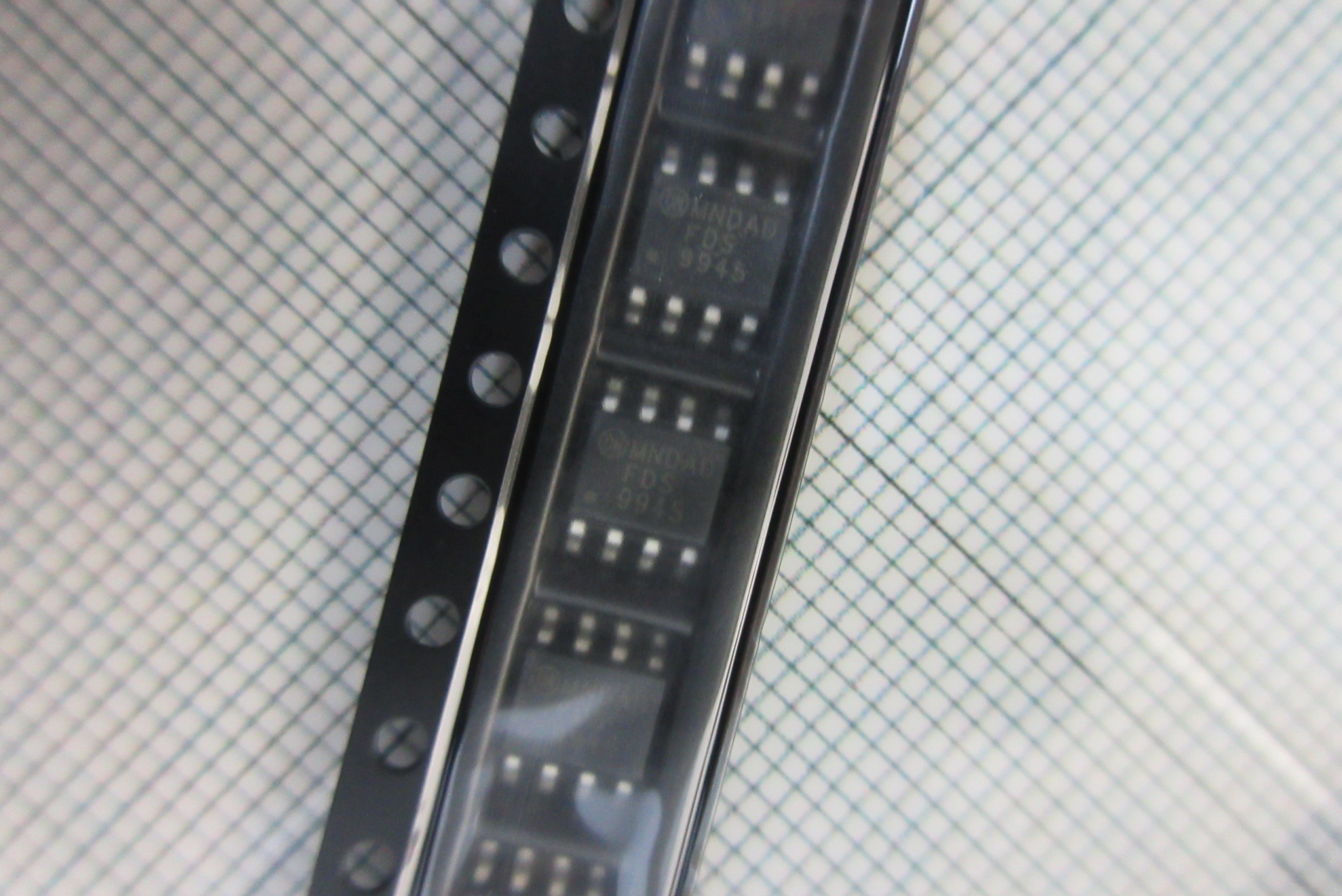

Part No.：FDS9945
Category： FETS
Manufacturer：ON Semiconductor
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：6
Update Time：2022-07-11 09:49:21
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FDS9945 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Arrays |
| Series | PowerTrench® | Part Status | Active |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 3.5A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 3.5A, 10V | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 5V | Input Capacitance (Ciss) (Max) @ Vds | 420pF @ 30V |
| Power - Max | 1W | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
