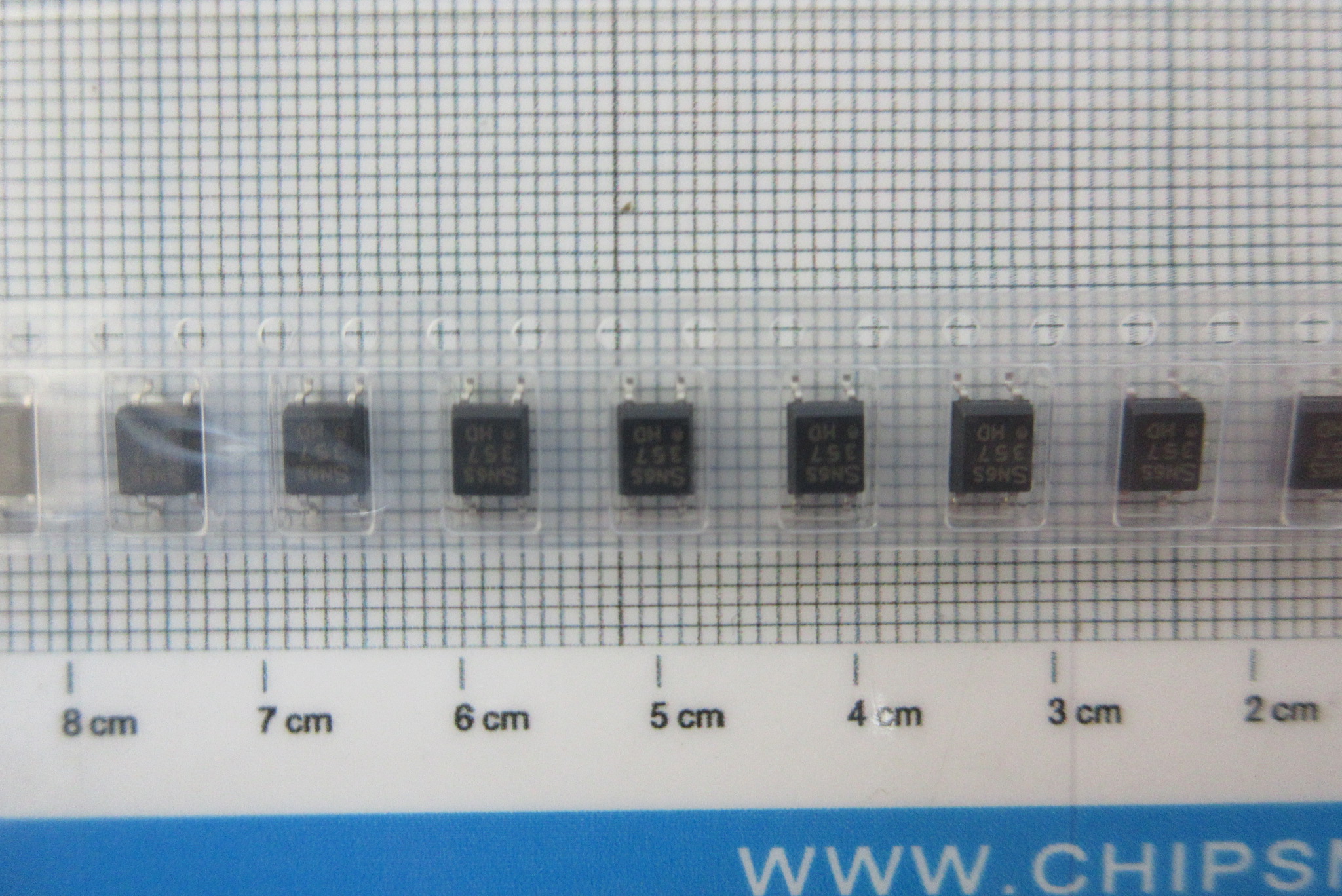

Part No.：PC357N4J000F
Category：Isolator
Manufacturer：Socle Technology Corporation
Date Code：
Package Type：4-SMD
Quantity：50000
Click：11
Update Time：2022-07-15 16:09:40
Description:
| Manufacturer | Socle Technology Corporation | Manufacturer's Part # | PC357N4J000F |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 1 | Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 300% @ 5mA | Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - | Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC | Output Type | Transistor |
| Voltage - Output (Max) | 80V | Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V | Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 200mV | Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount | Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
