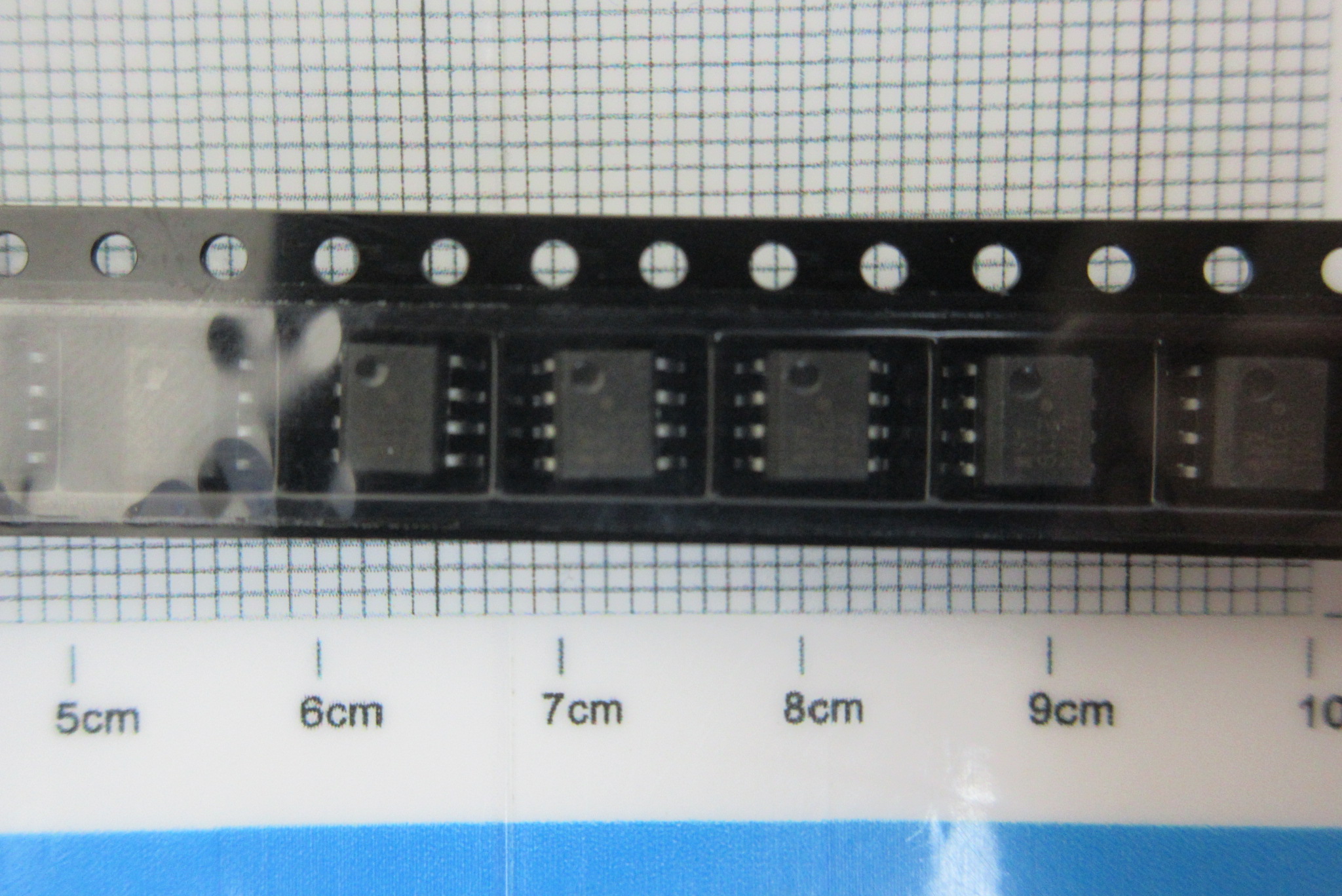

Part No.：HCPL-0701-500E
Category：Isolator
Manufacturer：Broadcom Limited
Date Code：
Package Type：8SOIC
Quantity：50000
Click：24
Update Time：2022-07-18 14:00:33
Description:
| Manufacturer | Broadcom Limited | Manufacturer's Part # | HCPL-0701-500E |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 1 | Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 500% @ 1.6mA | Current Transfer Ratio (Max) | 2600% @ 1.6mA |
| Turn On / Turn Off Time (Typ) | 200ns, 2µs | Rise / Fall Time (Typ) | - |
| Input Type | DC | Output Type | Darlington with Base |
| Voltage - Output (Max) | 18V | Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.4V | Current - DC Forward (If) (Max) | 20mA |
| Vce Saturation (Max) | - | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
