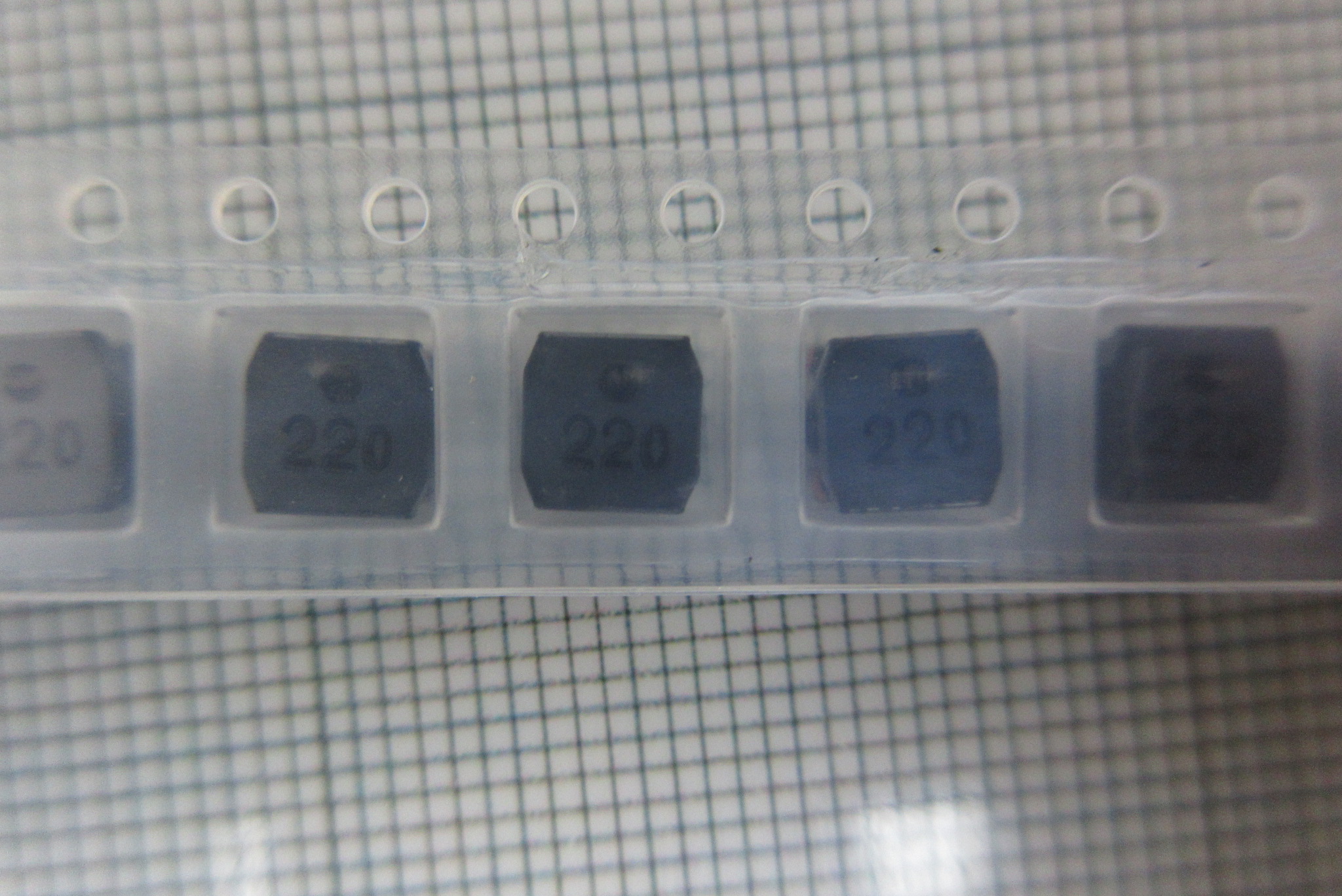

Part No.：VLS5045EX-220M
Category：Fixed Inductors
Manufacturer：TDK Corporation
Date Code：
Package Type：-
Quantity：50000
Click：32
Update Time：2022-08-02 14:28:43
Description:
| Manufacturer | TDK Corporation | Manufacturer's Part # | VLS5045EX-220M |
|---|---|---|---|
| Categories | Inductors, Coils, Chokes | Sub-Categories | Fixed Inductors |
| Series | VLS-EX | Part Status | Active |
| Type | Wirewound | Material - Core | Ferrite |
| Inductance | 22µH | Tolerance | ±20% |
| Current Rating | 1.8A | Current - Saturation | 2A |
| Shielding | Shielded | DC Resistance (DCR) | 162.5 mOhm Max |
| Q @ Freq | - | Frequency - Self Resonant | - |
| Ratings | - | Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100kHz | Features | - |
| Mounting Type | Surface Mount | Package / Case | Nonstandard |
| Supplier Device Package | - | Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
