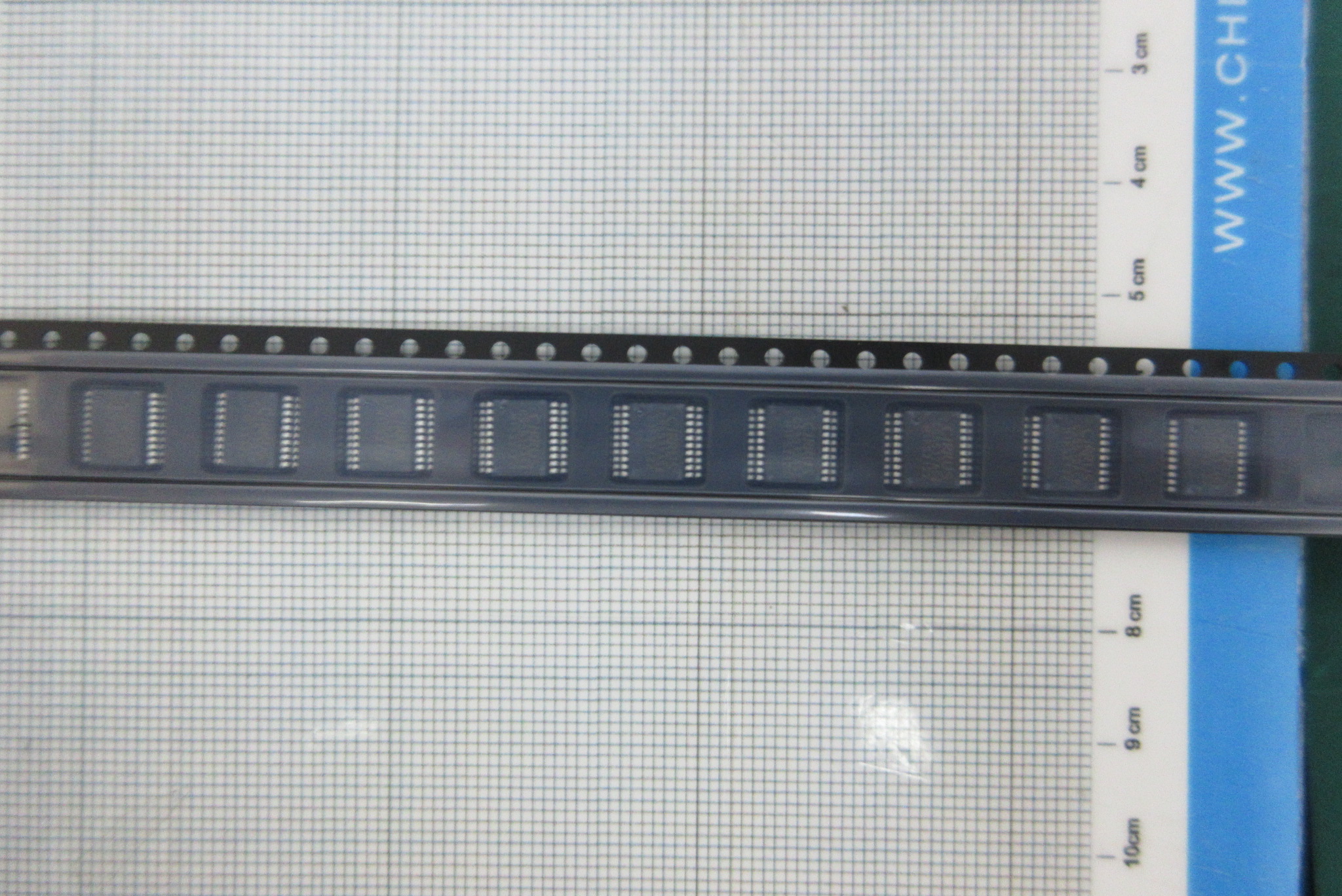

Part No.：CS5532-ASZR
Category：ADC
Manufacturer：Cirrus Logic
Date Code：
Package Type：20-SSOP
Quantity：50000
Click：31
Update Time：2022-08-15 11:05:41
Description:
| Manufacturer | Cirrus Logic | Manufacturer's Part # | CS5532-ASZR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Data Acquisition - Analog to Digital Converters (ADC) |
| Series | - | Part Status | Active |
| Number of Bits | 24 | Sampling Rate (Per Second) | 3.84k |
| Number of Inputs | 2 | Input Type | Differential |
| Data Interface | SPI | Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - | Number of A/D Converters | 1 |
| Architecture | Sigma-Delta | Reference Type | External |
| Voltage - Supply, Analog | ±3V, 0V ~ 5V | Voltage - Supply, Digital | 3V ~ 5V |
| Features | PGA, Selectable Address | Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
